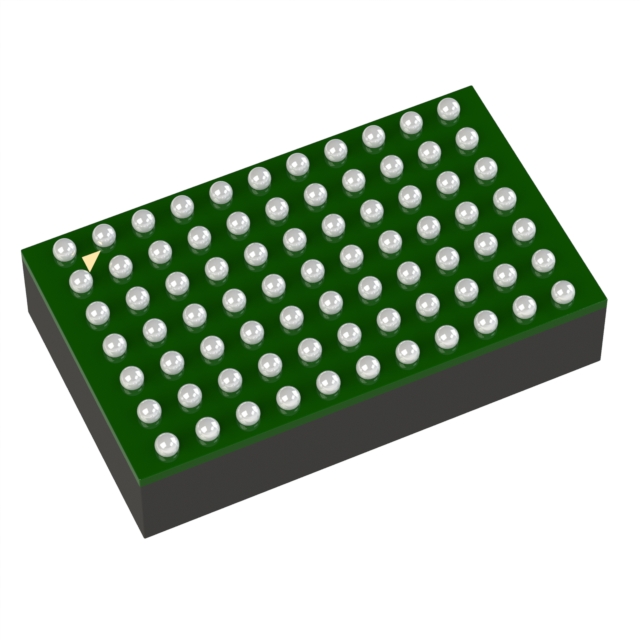

LTM4643EY#PBF
ActiveULTRATHIN QUAD ΜMODULE REGULATOR WITH CONFIGURABLE 3A OUTPUT ARRAY
Deep-Dive with AI
Search across all available documentation for this part.
LTM4643EY#PBF
ActiveULTRATHIN QUAD ΜMODULE REGULATOR WITH CONFIGURABLE 3A OUTPUT ARRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LTM4643EY#PBF |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 3 A |
| Mounting Type | Surface Mount |
| Number of Outputs | 4 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 77-BBGA Module |
| Size / Dimension [x] | 15 mm |
| Size / Dimension [x] | 0.59 in |
| Size / Dimension [y] | 0.35 " |
| Size / Dimension [y] | 9 mm |
| Size / Dimension [z] | 1.8 mm |
| Size / Dimension [z] | 0.07 " |
| Supplier Device Package | 77-BGA (15x9) |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 20 V |
| Voltage - Input (Min) [Min] | 4 V |
| Voltage - Output 1 [Max] | 3.3 V |
| Voltage - Output 1 [Min] | 0.6 V |
| Voltage - Output 2 [Max] | 3.3 V |
| Voltage - Output 2 [Min] | 0.6 V |
| Voltage - Output 3 [Max] | 3.3 V |
| Voltage - Output 3 [Min] | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 41.16 | |
| 5 | $ 39.63 | |||
| 10 | $ 38.99 | |||
| 25 | $ 38.15 | |||
| 50 | $ 37.53 | |||
| 170 | $ 36.46 | |||
Description
General part information
LTM4643 Series
The LTM4643 is a quad DC/DC step-down µModule (power module) regulator with 3A per output. Outputs can be paralleled in an array for up to 12A capability. Included in the package are the switching controllers, power FETs, inductors and support components. Operating over an input voltage range of 4V to 20V or 2.375V to 20V with an external bias supply, the LTM4643 supports an output voltage range of 0.6V to 3.3V each set by a single external resistor. Its high efficiency design delivers 3A continuous output current per channel. Only bulk input and output capacitors are needed.Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4643 is offered in a 9mm ×15mm × 1.82mm LGA and 9mm × 15mm × 2.42mm BGA packages with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsFPGAs, GPUs and ASICs ApplicationsPCIe and Backside PCB Mounting
