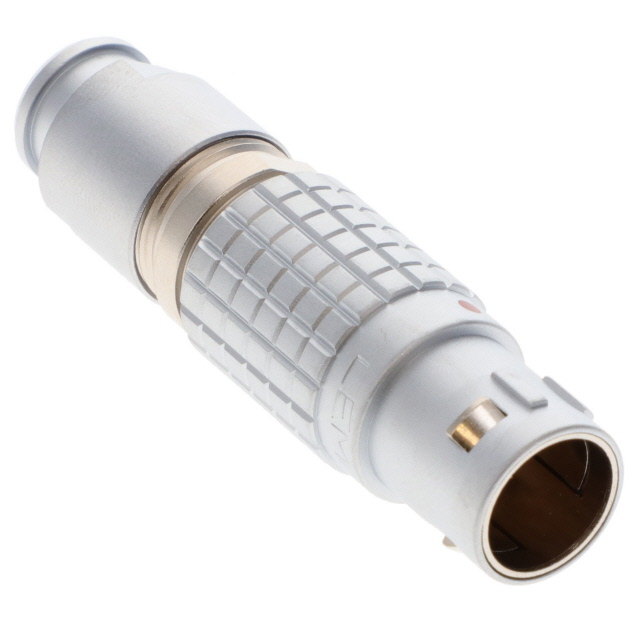

FGB.2B.316.CLAD72Z

Active

LEMO

CONN PLUG MALE 16P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FGB.2B.316.CLAD72Z

Active

LEMO

CONN PLUG MALE 16P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FGB.2B.316.CLAD72Z

Backshell Material, Plating	Brass, Chrome
Cable Opening [custom]	0.283 in, 0.244 in
Cable Opening [custom]	7.2 mm, 6.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	6 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	316
Shielding	Shielded

FGB.2B Series

Part	Fastening Type	Primary Material	Shell Material	Shell Finish	Shell Size - Insert	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Material Flammability Rating	Features	Ingress Protection	Mounting Type	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Number of Positions	Insert Material	Shielding	Orientation	Color	Cable Opening [diameter]	Termination	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]	Number of Positions	Cable Opening [custom]
LEMO FGB.2B.319.CLAD52	Push-Pull	Metal	Brass	Chrome	319	Gold	1 µm	39.4 µin	5 A	0.165 in 0.205 in	4.2 mm	5.2 mm	Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	19	Polyetheretherketone (PEEK)	Shielded	B	Silver
LEMO FGB.2B.303.CYCD92Z	Push-Pull	Metal	Brass	Chrome	303	Gold	1 µm	39.4 µin	17 A		8.2 mm 9.2 mm		Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug		Polyetheretherketone (PEEK)	Shielded	B	Silver	0.323 in 0.362 in	Crimp
LEMO FGB.2B.319.CLAD82Z	Push-Pull	Metal	Brass	Chrome	319	Gold	1 µm	39.4 µin	5 A				Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	19	Polyetheretherketone (PEEK)	Shielded	B	Silver			8.2 mm	7.2 mm	0.283 in	0.323 in
LEMO FGB.2B.304.CYCD92Z	Push-Pull	Metal	Brass	Chrome	304	Gold	1 µm	39.4 µin	15 A		8.2 mm 9.2 mm		Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	4	Polyetheretherketone (PEEK)	Shielded	B	Silver	0.323 in 0.362 in	Crimp
LEMO FGB.2B.308.CLAD72	Push-Pull	Metal	Brass	Chrome	308	Gold	1 µm	39.4 µin	10 A				Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	8	Polyetheretherketone (PEEK)	Shielded	B	Silver							0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO FGB.2B.316.CLAD72Z	Push-Pull	Metal	Brass	Chrome	316	Gold	1 µm	39.4 µin	6 A				Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug		Polyetheretherketone (PEEK)	Shielded	B	Silver							0.244 in 0.283 in	6.2 mm 7.2 mm	16
LEMO FGB.2B.319.CYCD99	Push-Pull	Metal	Brass	Chrome	319	Gold	1 µm	39.4 µin	5 A				Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	19	Polyetheretherketone (PEEK)	Shielded	B	Silver		Crimp						0.362 in 0.39 in		9.2 mm 9.9 mm
LEMO FGB.2B.319.CLAD92Z	Push-Pull	Metal	Brass	Chrome	319	Gold	1 µm	39.4 µin	5 A		8.2 mm 9.2 mm		Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	19	Polyetheretherketone (PEEK)	Shielded	B	Silver	0.323 in 0.362 in
LEMO FGB.2B.307.CLAD82Z	Push-Pull	Metal	Brass	Chrome	307	Gold	1 µm	39.4 µin	11 A				Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	7	Polyetheretherketone (PEEK)	Shielded	B	Silver			8.2 mm	7.2 mm	0.283 in	0.323 in
LEMO FGB.2B.310.CYCD92Z	Push-Pull	Metal	Brass	Chrome	310	Gold	1 µm	39.4 µin	8 A		8.2 mm 9.2 mm		Brass	UL94 V-0	Backshell	IP50	Free Hanging (In-Line)	Brass Chrome	-55 °C	250 °C	Male Pins Plug	10	Polyetheretherketone (PEEK)	Shielded	B	Silver	0.323 in 0.362 in	Crimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 92.27
		10	$ 84.67
		25	$ 81.42
		50	$ 78.70
		100	$ 74.36

Description

General part information

FGB.2B Series

16 Position Circular Connector Plug, Male Pins Solder Cup
