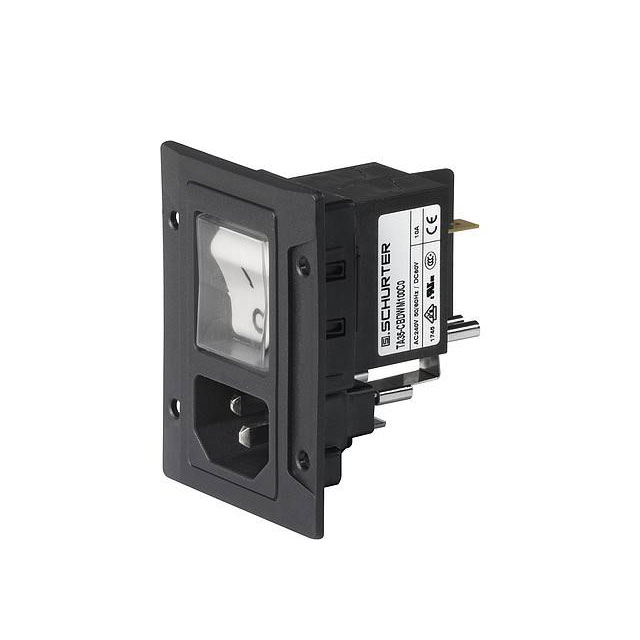

DG11-CBDWM100C0-000-C6135-331-880-00

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	DG11-CBDWM100C0-000-C6135-331-880-00

Accomodates a Fuse	False
Approval Agency	ENEC, CCC, cURus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP67
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	34.3 mm
Panel Cutout Dimensions [y]	59 mm
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 V

Part	Accomodates a Fuse	Filter Type	Connector Type	Mounting Type	Ingress Protection	Material Flammability Rating	Switch Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Approval Agency	Termination	Termination	Termination	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet
SCHURTER Inc. DG11-CBDWM100C0-000-C6135-331-880-00		Unfiltered - Commercial	Receptacle Male Blades - Module	Flange Panel Mount	IP67	UL94 V-0	Switch On-Off	34.3 mm	59 mm	IEC 320-C14	CCC cURus ENEC	0.25 in	6.3 mm	Quick Connect	250 V	10 A
SCHURTER Inc. DG11-C126F100C0-000-C6135-331-200-00		Unfiltered - Commercial	Receptacle Male Blades - Module	Panel Mount Snap-In	IP40	UL94 V-0	Illuminated Switch On-Off	30 mm	59 mm	IEC 320-C14	CCC cURus ENEC	0.25 in	6.3 mm	Quick Connect	250 V	10 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
