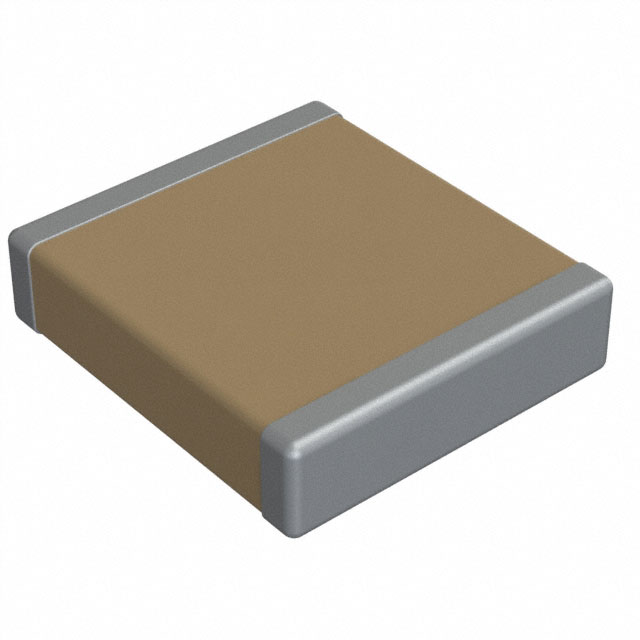

3640Y1K20474KXRWS3

Active

Knowles Johanson Manufacturing

CAP CER 0.47UF 1.2KV X7R 3640

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCapabilities, Benefits, Key Appl StackiCap Datasheet

3640Y1K20474KXRWS3

Active

Knowles Johanson Manufacturing

CAP CER 0.47UF 1.2KV X7R 3640

Deep-Dive with AI

DocumentsCapabilities, Benefits, Key Appl StackiCap Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3640Y1K20474KXRWS3

Applications	Boardflex Sensitive
Capacitance	0.47 µF
Features	Soft Termination
Mounting Type	Surface Mount, MLCC
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	3640
Package / Case	9110 Metric
Temperature Coefficient	X7R
Thickness (Max) [Max]	0.177 in
Thickness (Max) [Max]	4.5 mm
Tolerance	10 %
Voltage - Rated [custom]	1.2 kV
Voltage - Rated [custom]	1200 V

3640Y Series

Part	Applications	Capacitance	Thickness (Max) [Max]	Thickness (Max) [Max]	Features	Package / Case	Package / Case	Voltage - Rated	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Voltage - Rated	Voltage - Rated [custom]	Voltage - Rated [custom]
Knowles Johanson Manufacturing 3640Y5000275MXRWS2	Boardflex Sensitive	2.7 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	500 V	20 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y1K50334KXRWS3	Boardflex Sensitive	0.33 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	1500 V	10 %	MLCC Surface Mount	-55 °C	125 °C	X7R	1.5 kV
Knowles Johanson Manufacturing 3640Y2000565KXRWS2	Boardflex Sensitive	5.6 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	200 V	10 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y6300225KXRWS2	Boardflex Sensitive	2.2 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	630 V	10 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y6300225MXRWS2	Boardflex Sensitive	2.2 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	630 V	20 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y5000275KXRWS2	Boardflex Sensitive	2.7 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	500 V	10 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y1K20474KXRWS3	Boardflex Sensitive	0.47 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric		10 %	MLCC Surface Mount	-55 °C	125 °C	X7R		1.2 kV	1200 V
Knowles Johanson Manufacturing 3640Y2000565MXRWS2	Boardflex Sensitive	5.6 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	200 V	20 %	MLCC Surface Mount	-55 °C	125 °C	X7R
Knowles Johanson Manufacturing 3640Y1K00105KXRWS2	Boardflex Sensitive	1 µF	0.177 in	4.5 mm	Soft Termination	3640	9110 Metric	1000 V	10 %	MLCC Surface Mount	-55 °C	125 °C	X7R	1 kV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 22.33

Description

General part information

3640Y Series

0.47 µF ±10% 1200V (1.2kV) Ceramic Capacitor X7R 3640 (9110 Metric)
