GSF1.0201.01

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PNL SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	GSF1.0201.01

Accomodates a Fuse	False
Approval Agency	CCC, UL, CSA, ENEC
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount, Snap-In
Panel Cutout Dimensions [x]	30.3 mm
Panel Cutout Dimensions [y]	22.3 mm
Panel Thickness	0.236 in
Panel Thickness	6 mm
Termination	Solder
Voltage Rating - Appliance Inlet	250 VAC

Part	Material Flammability Rating	Ingress Protection	Mounting Type	Filter Type	Accomodates a Fuse	Connector Type	Termination	Panel Thickness	Panel Thickness	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Current Rating - Appliance Inlet	Connector Style	Voltage Rating - Appliance Inlet
SCHURTER Inc. GSF1.0201.01	UL94 V-0	IP40	Panel Mount Snap-In Through Hole Right Angle	Unfiltered - Commercial		Male Blades Receptacle	Solder	0.236 in	6 mm	30.3 mm	22.3 mm	CCC CSA ENEC UL	10 A	IEC 320-C14	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

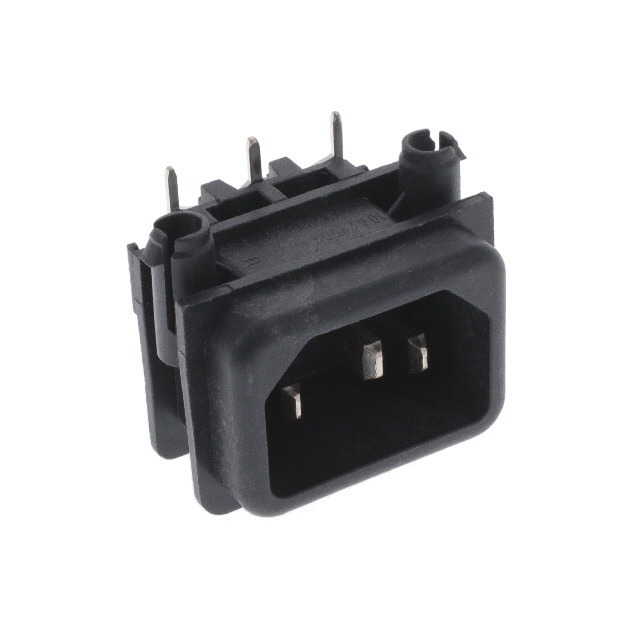

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In; Through Hole, Right Angle
