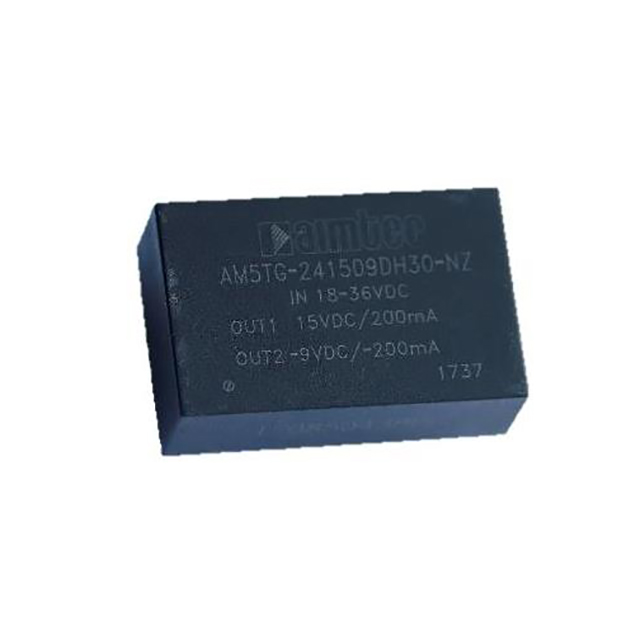

AM5TG-241509DH30-NZ
Unknownaimtec
DC DC CONVERTER 15V -9V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM5TG-241509DH30-NZ
Unknownaimtec
DC DC CONVERTER 15V -9V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM5TG-241509DH30-NZ |
|---|---|
| Applications | ITE (Commercial) |
| Efficiency | 85 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module, 8 Leads |
| Power (Watts) | 6 W |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AM5TG Series
Isolated Module DC DC Converter 2 Output 15V -9V 200mA, 200mA 18V - 36V Input
