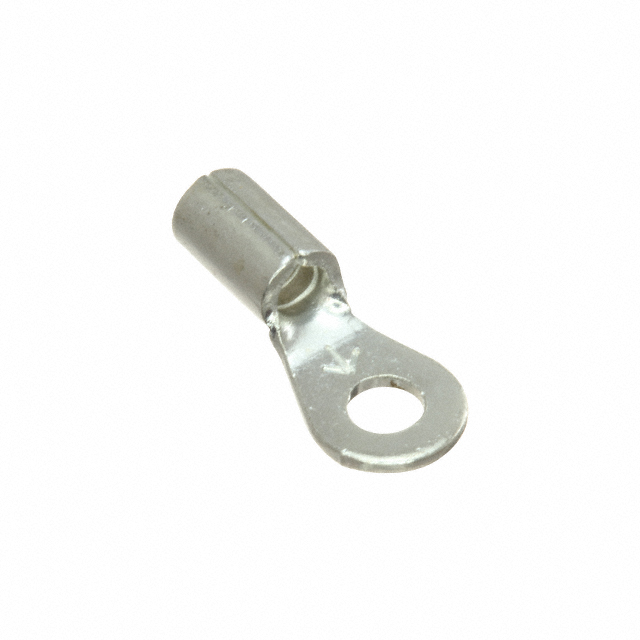

12-4S
Active3M (TC)
16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
12-4S
Active3M (TC)
16-14 AWG NON-INSULATED BUTTED SEAM RING TONGUE TERMINAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 12-4S |
|---|---|
| Contact Finish | Tin |
| Contact Material | ETP, Copper |
| Features | Butted Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.6 in |
| Length - Overall [x] | 15.24 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.03 in |
| Thickness | 0.76 mm |
| Width - Outer Edges [y] | 0.25 " |
| Width - Outer Edges [y] | 6.35 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
12-4 Series
Ring Terminal Connector 4 Stud Circular 14-16 AWG Crimp
