VN5E016AH-E

Active

STMicroelectronics

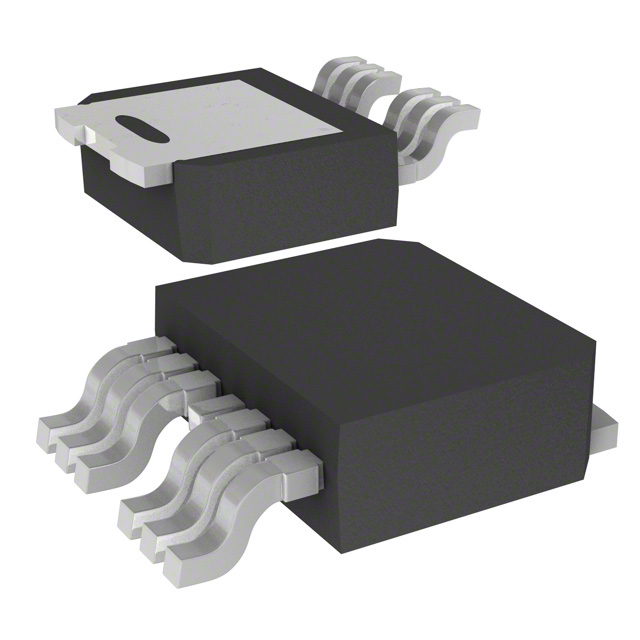

IC PWR SWITCH N-CHAN 1:1 6HPAK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

VN5E016AH-E

Active

STMicroelectronics

IC PWR SWITCH N-CHAN 1:1 6HPAK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	VN5E016AH-E

Fault Protection	Current Limiting (Fixed), Over Voltage, Over Temperature, Open Load Detect
Features	Auto Restart
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Output Configuration	High Side
Output Type	N-Channel
Package / Case	TO-252-7, DPAK (6 Leads + Tab)
Ratio - Input:Output [custom]	1:1
Rds On (Typ)	16 mOhm
Supplier Device Package	6-HPAK
Switch Type	General Purpose
Voltage - Load [Max]	28 V
Voltage - Load [Min]	4.5 V
Voltage - Supply (Vcc/Vdd)	False

VN5E016AH-E Series

16 mΩ high-side driver with analog current sense

Part	Features	Output Type	Rds On (Typ)	Output Configuration	Supplier Device Package	Switch Type	Ratio - Input:Output [custom]	Mounting Type	Input Type	Package / Case	Fault Protection	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs
STMicroelectronics VN5E016AH-E	Auto Restart	N-Channel	16 mOhm	High Side	6-HPAK	General Purpose	1:1	Surface Mount	Non-Inverting	TO-252-7 DPAK (6 Leads + Tab)	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	28 V	4.5 V	On/Off	150 °C	-40 °C	1
STMicroelectronics VN5E016MH-E	Auto Restart	N-Channel	16 mOhm	High Side	6-HPAK	General Purpose	1:1	Surface Mount	Non-Inverting	TO-252-7 DPAK (6 Leads + Tab)	Current Limiting (Fixed) Over Temperature Over Voltage	28 V	4.5 V	On/Off	150 °C	-40 °C	1
STMicroelectronics VN5E016AHTR-E	Auto Restart	N-Channel	16 mOhm	High Side	6-HPAK	General Purpose	1:1	Surface Mount	Non-Inverting	TO-252-7 DPAK (6 Leads + Tab)	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	28 V	4.5 V	On/Off	150 °C	-40 °C	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

VN5E016AH-E Series

The VN5E016AH-E is a single channel high-side driver manufactured in the ST proprietary VIPower™ M0-5 technology and housed in the tiny HPak package. The VN5E016AH-E is designed to drive 12 V automotive grounded loads delivering protection, diagnostics and easy 3 V and 5 V CMOS compatible interface with any microcontroller.

The device integrates advanced protective functions such as load current limitation, inrush and overload active management by power limitation, overtemperature shut-off with auto restart and overvoltage active clamp.

A dedicated analog current sense pin is associated with every output channel to provide enhanced diagnostic functions. These functions include fast detection of overload and short-circuit to ground through power limitation indication, overtemperature indication, short-circuit to VCCdiagnosis and ON-state and OFF-state open-load detection.

Documents

Technical documentation and resources
