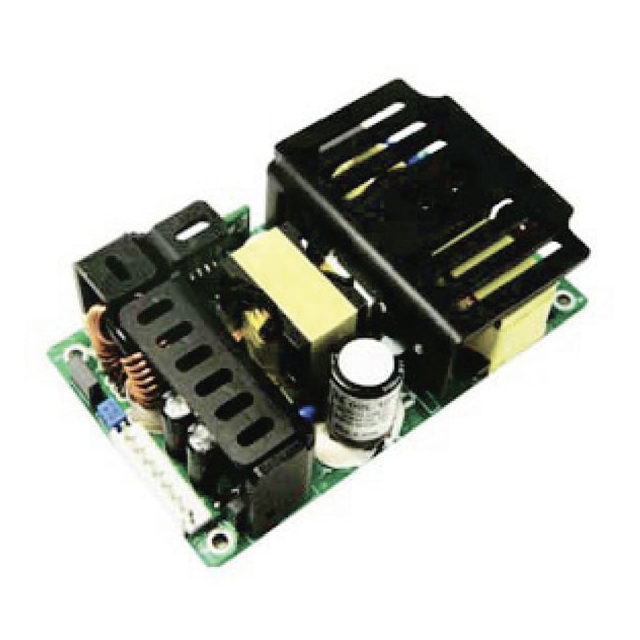

QPSF-200-48

Active

Qualtek

AC/DC CONVERTER 48V 154W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 48V 154W

Technical Specifications

Parameters and characteristics for this part

Specification	QPSF-200-48

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	3.2 A
Efficiency	89 %
Features	PFC, Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	202 W
Power (Watts)	154 W
Size / Dimension [x]	5.04 "
Size / Dimension [x]	128 mm
Size / Dimension [y]	3.01 in
Size / Dimension [y]	76.5 mm
Size / Dimension [z]	34.6 mm
Size / Dimension [z]	1.36 "
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Voltage - Output 1	Efficiency	Mounting Type	Applications	Features	Power (Watts)	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Type	Power (Watts)
Qualtek QPSF-200-12	34.6 mm	3.01 in	1.36 "	5.04 "	76.5 mm	128 mm	CB CE cURus	1	264 VAC 370 VDC	90 VAC 120 VDC	12.5 A	12 V	88.5 %	Chassis Mount	ITE (Commercial)	Adjustable Output PFC Universal Input	150 W 200 W	3000 V	-20 °C	70 °C	Open Frame
Qualtek QPSF-200-48	34.6 mm	3.01 in	1.36 "	5.04 "	76.5 mm	128 mm	CB CE cURus	1	264 VAC 370 VDC	90 VAC 120 VDC	3.2 A	48 V	89 %	Chassis Mount	ITE (Commercial)	Adjustable Output PFC Universal Input	154 W	3000 V	-20 °C	70 °C	Open Frame	202 W
Qualtek QPSF-200-27	34.6 mm	3.01 in	1.36 "	5.04 "	76.5 mm	128 mm	CB CE cURus	1	264 VAC 370 VDC	90 VAC 120 VDC	5.5 A	27 V	89 %	Chassis Mount	ITE (Commercial)	Adjustable Output PFC Universal Input	149 W 200 W	3000 V	-20 °C	70 °C	Open Frame

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 81.92

General part information

Open Frame AC DC Converters 1 Output 48V 90 ~ 264 VAC, 120 ~ 370 VDC Input
