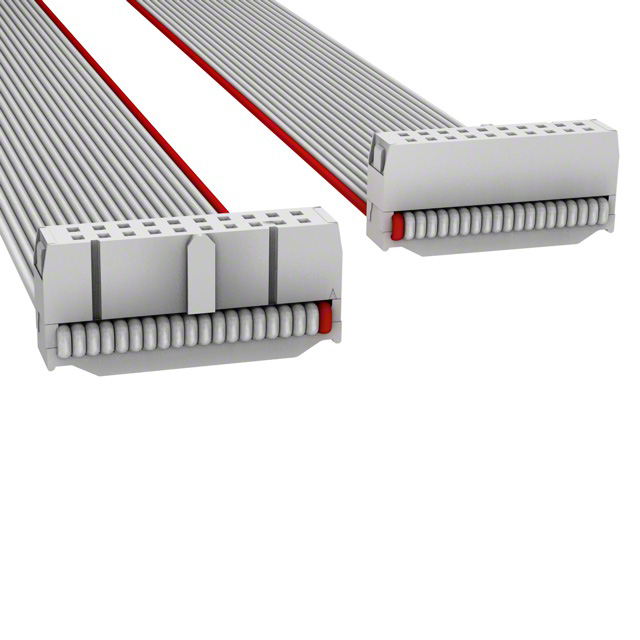

H3DDS-2006G

Active

Assmann WSW Components

IDC CBL - HHKR20S/AE20G/HHKR20S

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKR20S/AE20G/HHKR20S

Technical Specifications

Parameters and characteristics for this part

Specification	H3DDS-2006G

Cable Termination	IDC
Connector Type	Socket to Socket
Contact Finish	Tin
Features	Polarizing Key, Strain Relief
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	20
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

Part	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Connector Type	Color	Length [x]	Length [x]	Cable Termination	Shielding	Contact Finish	Number of Positions	Features	Number of Rows	Length	Length	Length
Assmann WSW Components H3DDS-2018M	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Socket	Multiple Ribbon	457.2 mm	1.5 ft	IDC	Unshielded	Tin	20	Polarizing Key Strain Relief	2
Assmann WSW Components H3DDS-2006M	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Socket	Multiple Ribbon			IDC	Unshielded	Tin	20	Polarizing Key Strain Relief	2	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDS-2006G	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Socket				IDC	Unshielded	Tin	20	Polarizing Key Strain Relief	2	152.4 mm	6 "	0.5 '
Assmann WSW Components H3DDS-2018G	0.05 "	1.27 mm	0.1 in	2.54 mm	Socket to Socket		457.2 mm	1.5 ft	IDC	Unshielded	Tin	20	Polarizing Key Strain Relief	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
