1811-10F
ActiveDESOLDERING BRAID, PRO WICK®, BLUE #4, STATIC DISSIPATIVE BOBBIN, COPPER, 10FT X 0.098"
Deep-Dive with AI
Search across all available documentation for this part.
1811-10F
ActiveDESOLDERING BRAID, PRO WICK®, BLUE #4, STATIC DISSIPATIVE BOBBIN, COPPER, 10FT X 0.098"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1811-10F |
|---|---|
| Color | Blue |
| ESD Protection | Static Dissipative (SD) |
| Length [x] | 3.048 m |
| Length [x] | 10 ft |
| Product Type | Braid/Wick |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Type | Rosin, Non Activated (R) |
| Width [x] | 0.098 in |
| Width [x] | 2.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1811 Series

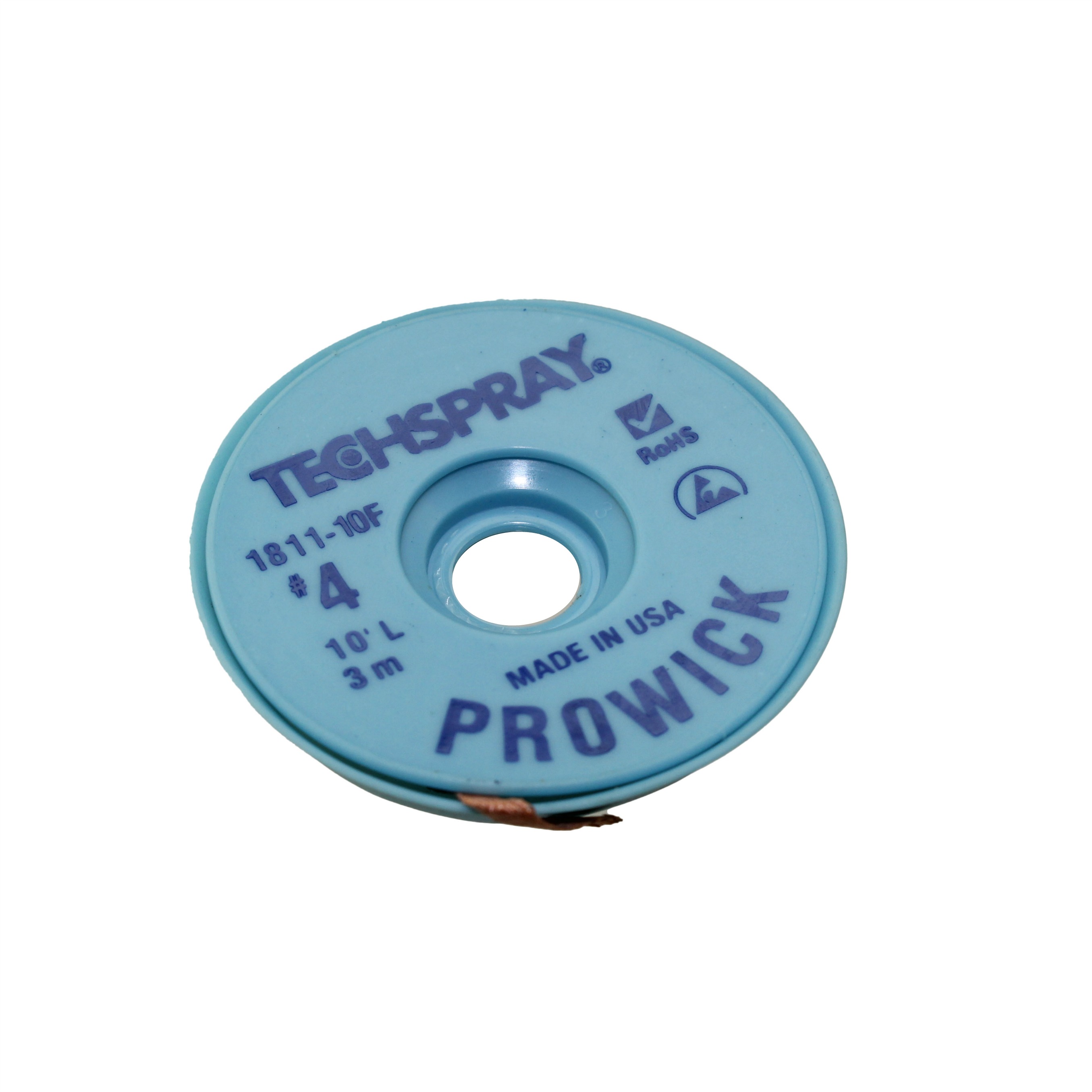

The 1811-10F is a 10ft #4 Pro Wick Desoldering Braid for fastest wicking action. Rosin flux coated braid is ideal for high volume PCB production/repair environments. It has pre-fluxed copper braid that is used to remove solder, which allows components to be replaced and excess solder to be removed.
Documents
Technical documentation and resources
