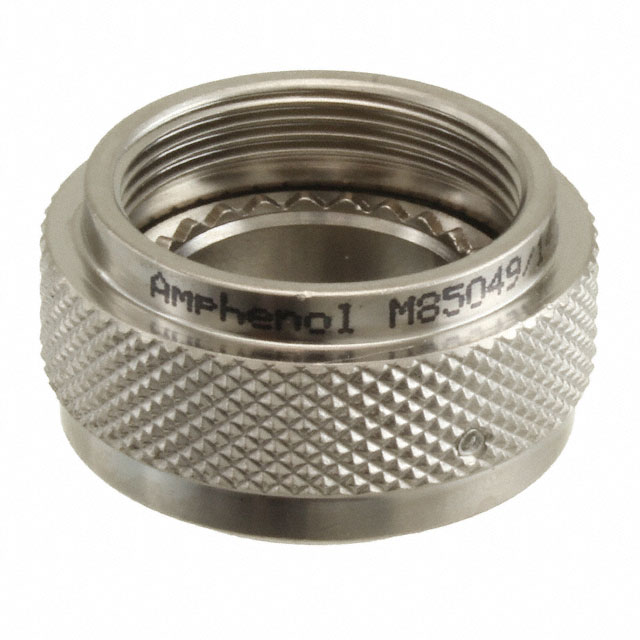

M85049/14S15N

Active

Amphenol Interconnect India

CONN BACKSHELL E NUT SZ15 M22

Deep-Dive with AI

Search across all available documentation for this part.

M85049/14S15N

Active

Amphenol Interconnect India

CONN BACKSHELL E NUT SZ15 M22

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/14S15N

Cable Exit	180 °
Color	Silver
Features	Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy
Plating	Electroless Nickel
Shell Size - Insert	15
Shielding	Unshielded
Type	E Nut, Backshell

M85049/14 Series

Part	Plating	Cable Exit	Shielding	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Color	For Use With/Related Products	Type	Shell Size - Insert	Shell Size - Insert	Features	Shell Size - Insert [custom]	Shell Size - Insert [custom]
Amphenol Interconnect India M85049/14-19Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	38.61 mm	1.52 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	19	F
Amphenol Interconnect India M85049/14-13Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	29.46 mm	1.16 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	13	C
Amphenol Interconnect India M85049/14S9Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	21.84 mm	0.86 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut			Self Locking	9	A
Amphenol Interconnect India M85049/14-25Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	47.5 mm	1.87 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	25	J
Amphenol Interconnect India M85049/14S19Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	38.61 mm	1.52 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	19	F	Self Locking
Amphenol Interconnect India M85049/14-9Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	21.84 mm	0.86 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut				9	A
Amphenol Interconnect India M85049/14-17Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	35.81 mm	1.41 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut		17 E
Amphenol Interconnect India M85049/14-15Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	32.51 mm	1.28 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	15	D
Amphenol Interconnect India M85049/14S15N	Electroless Nickel	180 °	Unshielded	Aluminum Alloy			Silver	MIL-DTL-38999 Series III IV	Backshell E Nut	15		Self Locking
Amphenol Interconnect India M85049/14S13Z	Zinc Cobalt	180 °	Unshielded	Aluminum Alloy	29.46 mm	1.16 in	Black	MIL-DTL-38999 Series III IV	Backshell E Nut	13	C	Self Locking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 18.60
		10	$ 16.12
		25	$ 15.28
		50	$ 15.06
		100	$ 13.29
		250	$ 12.40
	Bulk	1	$ 353.13

Description

General part information

M85049/14 Series

Silver Connector Backshell, E Nut M22x1 15

Documents

Technical documentation and resources

No documents available
