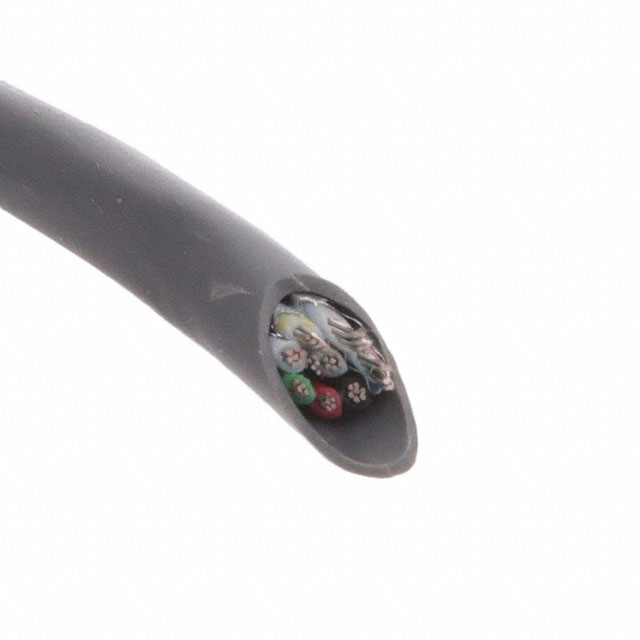

2463C SL002

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 8CON 22AWG SLATE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	2463C SL002

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	5.84 mm
Jacket (Insulation) Diameter [diameter]	0.23 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	8
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Usage	Jacket Color	Jacket (Insulation) Material	Voltage	Conductor Insulation	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Type	Conductor Material	Shield Coverage	Shield Material	Features	Number of Conductors
ALPHA WIRE 2463C SL002	22 AWG	7	30 AWG	500 '	152.4 m	Communication Control	Slate	Poly-Vinyl Chloride (PVC)	300 V	Polypropylene (PP)	0.02 in	0.508 mm	Multi-Pair	5.84 mm	0.23 in	Foil	Copper Tinned	100 %	Aluminum	Drain Wire	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 1423.04

General part information

8 (4 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG Foil 500.0' (152.4m)
