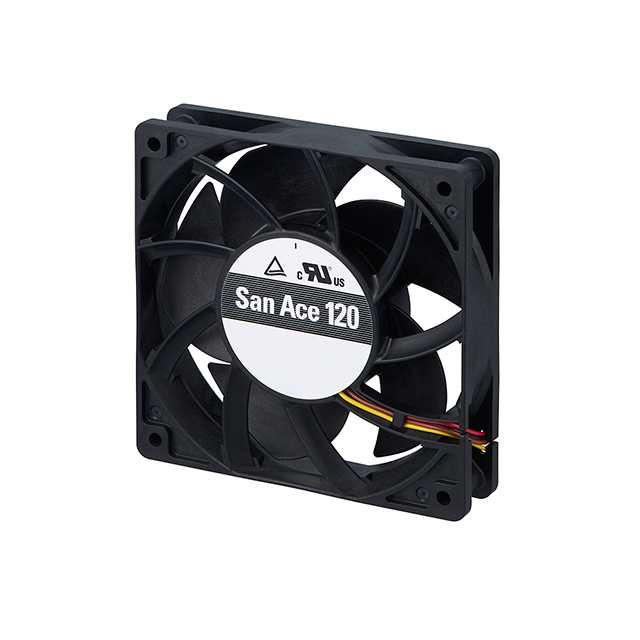

9GA1224S40011
ActiveSanyo Denki America Inc.
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
9GA1224S40011
ActiveSanyo Denki America Inc.
FAN AXIAL 120X25.4MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9GA1224S40011 |
|---|---|
| Air Flow | 3.17 m³/min |
| Air Flow | 113.1 CFM |
| Approval Agency | cURus, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.31 A |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Lifetime @ Temp. | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 54 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 7.44 W |
| RPM | 5400 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 260 Pa |
| Static Pressure | 1.044 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 0.617 lb |
| Weight | 280 g |
| Width [y] | 25.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.50 | |
| 10 | $ 45.03 | |||
| 25 | $ 43.01 | |||
| 50 | $ 41.55 | |||
| 100 | $ 40.14 | |||
| 250 | $ 38.34 | |||
Description
General part information
9GA1224 Series
Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 113.1 CFM (3.17m³/min) 3 Wire Leads
