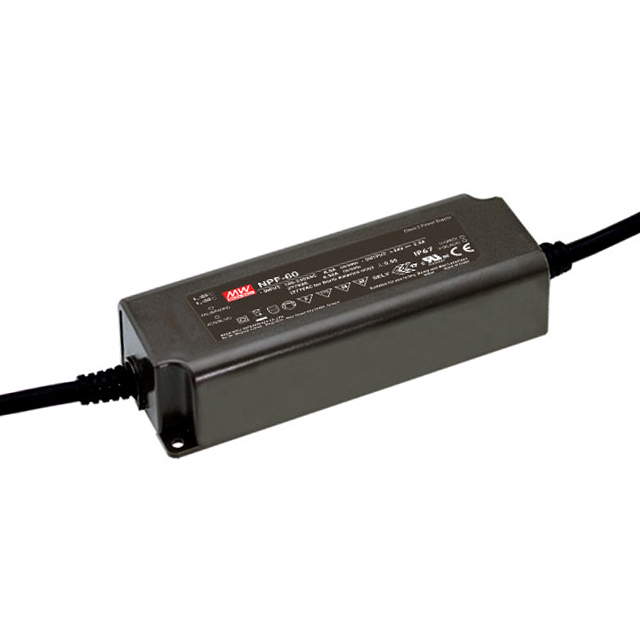

NPF-60-48

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.25A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NPF-60-48

Active

MEAN WELL USA Inc.

LED DVR CCCV ACDC 28.8-48V 1.25A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NPF-60-48

Approval Agency	CB, CCC, CE, ENEC
Current - Output (Max) [Max]	1.25 A
Efficiency	90 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	60 W
Ratings	IP67
Size / Dimension [x]	5.91 "
Size / Dimension [x]	150 mm
Size / Dimension [y]	53 mm
Size / Dimension [y]	2.09 "
Size / Dimension [z]	1.38 in
Size / Dimension [z]	35 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	48 V
Voltage - Output [Min]	28.8 V

NPF-60 Series

Part	Topology	Voltage - Isolation	Power (Watts)	Ratings	Voltage - Input (Max) [Max]	Efficiency	Number of Outputs	Voltage - Input (Min) [Min]	Features	Mounting Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Type	Approval Agency	Current - Output (Max) [Max]	Termination Style	Voltage - Output [Min]	Voltage - Output [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Dimming
MEAN WELL USA Inc. NPF-60-42	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE ENEC	1.43 A	Wire Leads	25.2 V	42 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60-48	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE ENEC	1.25 A	Wire Leads	28.8 V	48 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60-12	AC DC Converter	3750 V	60 W	IP67	305 VAC	86 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE cURus ENEC	5 A	Wire Leads	7.2 V	12 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60-30	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE ENEC	2 A	Wire Leads			85 °C	-40 °C
MEAN WELL USA Inc. NPF-60-36	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE ENEC	1.67 A	Wire Leads	21.6 V	36 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60-24	AC DC Converter	3750 V	60 W	IP67	305 VAC	89 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE cURus ENEC	2.5 A	Wire Leads	14.4 V	24 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60D-42	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current	CB CCC CE ENEC	1.43 A	Wire Leads	25.2 V	42 V	85 °C	-40 °C	Analog PWM
MEAN WELL USA Inc. NPF-60-20	AC DC Converter	3750 V	60 W	IP67	305 VAC	88 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current Voltage	CB CCC CE ENEC	3 A	Wire Leads	12 V	20 V	85 °C	-40 °C
MEAN WELL USA Inc. NPF-60D-54	AC DC Converter	3750 V	60 W	IP67	305 VAC	90 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current	CB CCC CE ENEC	1.12 A	Wire Leads	32.4 V	54 V	85 °C	-40 °C	Analog PWM
MEAN WELL USA Inc. NPF-60D-12	AC DC Converter	3750 V	60 W	IP67	305 VAC	86 %	1	90 VAC	OCP OTP OVP SCP	Chassis Mount	5.91 "	1.38 in	53 mm	35 mm	150 mm	2.09 "	Constant Current	CB CCC CE cURus ENEC	5 A	Wire Leads	7.2 V	12 V	85 °C	-40 °C	Analog PWM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 32.53
		5	$ 29.74
		10	$ 28.62
		25	$ 27.19

Description

General part information

NPF-60 Series

1.25A 28.8 ~ 48V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
