345-062-520-104
ActiveEDAC Inc.

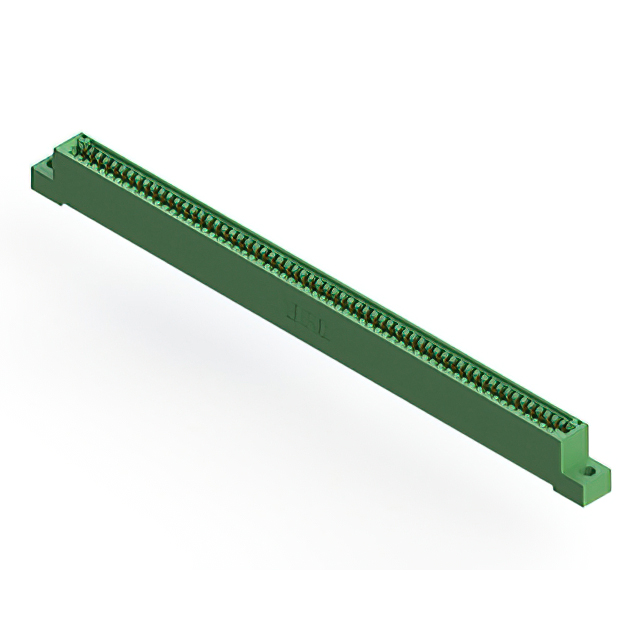

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 62 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-062-520-104
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 62 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-062-520-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 62 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-062 Series
...
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Material - Insulation | Number of Positions | Contact Type | Flange Feature | Gender | Mounting Type | Pitch [x] | Pitch [x] | Contact Finish Thickness | Contact Finish Thickness | Termination Rows | Termination | Contact Material | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Card Type | Read Out | Number of Positions/Bay/Row [custom] | Features | Number of Positions/Bay/Row [custom] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Non Specified - Dual Edge | Dual | 31 | ||||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1 | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Single | Card Guides | 62 | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Non Specified - Dual Edge | Dual | 31 | 3.25 mm | 0.128 in | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Single | Card Guides | 62 | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | Floating Bobbin Top Mount Opening | Female | Through Hole Right Angle | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Non Specified - Dual Edge | Dual | 31 | 2.95 mm | 0.116 in | ||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Single | Card Guides | 62 | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Non Specified - Dual Edge | Dual | 31 | Card Guides | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1 | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Single | Card Guides | 62 | |||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | Flush Mount Top Opening Unthreaded | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 1 | Solder | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Single | 62 | 3.96 mm | 0.156 in | ||||
EDAC Inc. | -40 °C | 105 ░C | Green | Polyester Thermoplastic | 62 | Cantilever | 4-40 Threaded Insert Top Mount Opening | Female | Through Hole | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 2 | Wire Wrap | Copper Alloy | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Non Specified - Dual Edge | Dual | 31 | Card Guides |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-062 Series
62 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
