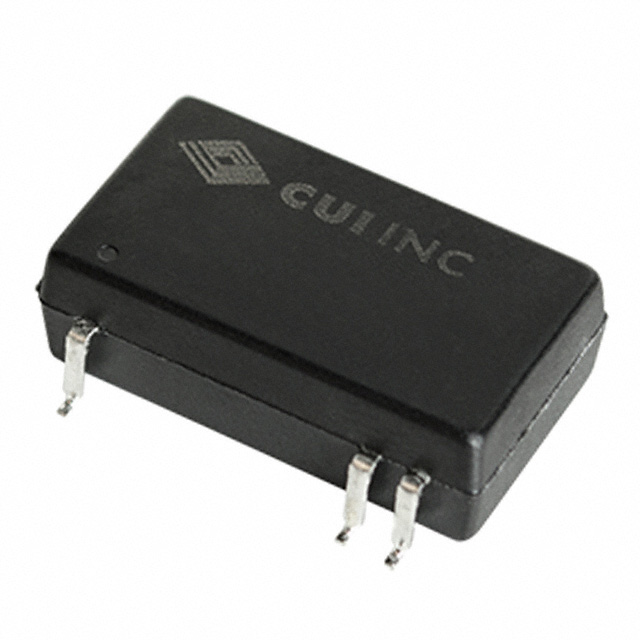

PQM3-D12-S15-M-TR
ObsoleteCUI Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PQM3-D12-S15-M-TR
ObsoleteCUI Inc.
DC DC CONVERTER 15V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PQM3-D12-S15-M-TR |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | EN |
| Current - Output (Max) [Max] | 200 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 16-SMD Module, 6 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 0.94 in, 23.9 mm |
| Size / Dimension [y] | 13.7 mm, 0.54 in |
| Size / Dimension [z] | 8 mm, 0.31 in |
| Standard Number | 55024, 55032 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 17.87 | |
| 5 | $ 17.74 | |||
| 10 | $ 17.60 | |||
| 25 | $ 17.32 | |||
| 50 | $ 16.50 | |||
| Tape & Reel (TR) | 330 | $ 14.85 | ||
Description
General part information
PQM3-D12 Series
Isolated Module DC DC Converter 1 Output 15V 200mA 9V - 18V Input
