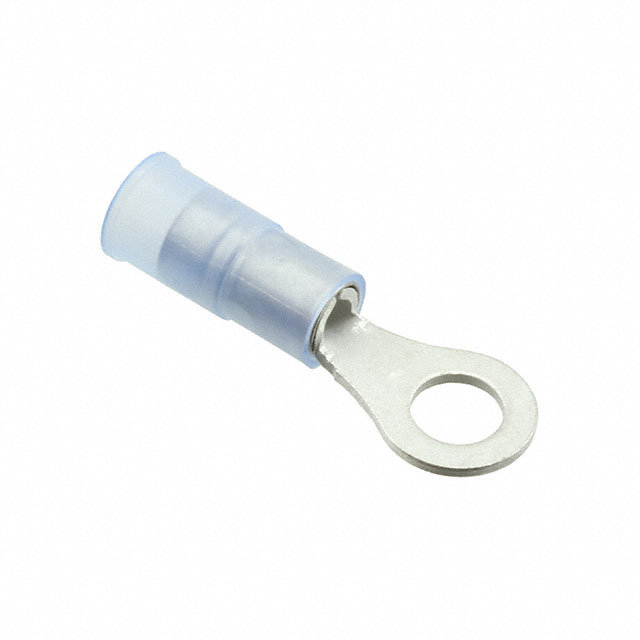

0190570102

Active

Molex

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0190570102

Active

Molex

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190570102

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper
Insulation	Insulated
Length - Overall [x]	27.1 mm
Length - Overall [x]	1.067 in
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	8.69 mm
Width - Outer Edges [y]	0.342 in

019057 Series

Part	Width - Outer Edges [x]	Width - Outer Edges [x]	Stud/Tab Size	Thickness	Thickness	Insulation	Termination	Contact Finish	Color	Terminal Type	Contact Material	Wire Gauge [Max]	Wire Gauge [Min]	Material - Insulation	Mounting Type	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges	Length - Overall	Length - Overall	Features
Molex 0190570011	0.327 in	8.31 mm	10 Stud	0.71 mm	0.028 in	Insulated	Crimp	Electro-Tin	Red	Circular	Copper	22 AWG	17.5 AWG	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	3.56 mm	0.14 in	1.027 "	26.09 mm
Molex 0190570030				0.71 mm	0.028 in	Insulated	Crimp	Electro-Tin	Red	Circular	Copper	22 AWG	17.5 AWG	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	3.56 mm	0.14 in	0.953 in	24.21 mm	8 Stud	0.264 "	6.7 mm
Molex 0190570026			4 Stud	0.71 mm	0.028 in	Insulated	Crimp	Electro-Tin	Red	Circular	Copper	22 AWG	17.5 AWG	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	3.56 mm	0.14 in	0.953 in	24.21 mm		0.264 "	6.7 mm
Molex 0190570048				0.79 mm	0.031 in	Insulated	Crimp	Electro-Tin	Blue	Circular	Copper			Nylon Polyamide (PA)	Free Hanging (In-Line)			1.407 in	35.74 mm	5 Stud 6 Stud
Molex 0190570005	0.235 in		6 Stud	0.71 mm	0.028 in	Insulated	Crimp	Electro-Tin	Red	Circular	Copper	22 AWG	17.5 AWG	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	3.56 mm	0.14 in						5.96 mm	0.855 in	21.72 mm
Molex 0190570111			0.3125 Stud	50 mils	0.05 in	Insulated	Crimp	Electro-Tin	Yellow	Circular	Copper			Nylon Polyamide (PA)	Free Hanging (In-Line)	5.72 mm	0.225 "	1.476 in	37.49 mm		0.592 in	15.04 mm				Heavy Duty
Molex 0190570102			10 Stud	0.79 mm	0.031 in	Insulated	Crimp	Electro-Tin	Blue	Circular	Copper			Nylon Polyamide (PA)	Free Hanging (In-Line)			1.067 in	27.1 mm		0.342 in	8.69 mm
Molex 0190570037				50 mils	0.05 in	Insulated	Crimp	Electro-Tin	Yellow	Circular	Copper			Nylon Polyamide (PA)	Free Hanging (In-Line)	5.72 mm	0.225 "			1/2 Stud	0.75 in	19.05 mm		1.7 in	43.18 mm	Heavy Duty
Molex 0190570552	0.327 in	8.31 mm		0.71 mm	0.028 in	Insulated	Crimp	Electro-Tin	Red	Circular	Copper	22 AWG	17.5 AWG	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	3.56 mm	0.14 in	1.027 "	26.09 mm	8 Stud
Molex 0190570515			0.25 Stud	0.79 mm	0.031 in	Insulated	Crimp	Electro-Tin	Blue	Circular	Copper			Nylon Polyamide (PA)	Free Hanging (In-Line)						0.467 in	11.86 mm		1.208 in	30.68 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.61
		10	$ 0.51
		100	$ 0.40
		1000	$ 0.31
		3000	$ 0.28

Description

General part information

019057 Series

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

Datasheet

0190440069 Drawing/Datasheet

Datasheet
