BC-ATP-131808

Active

Boxco

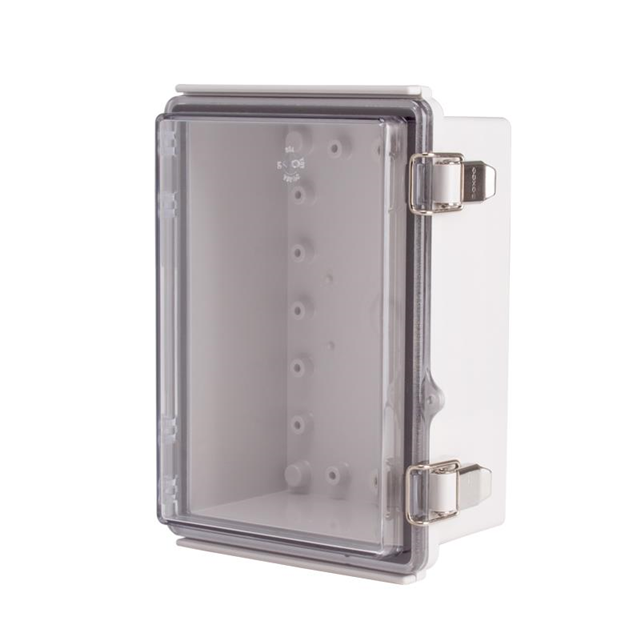

BOX ABS CLEAR 7.28"L X 5.32"W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BC-ATP-131808

Active

Boxco

BOX ABS CLEAR 7.28"L X 5.32"W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BC-ATP-131808

Area (L x W)	250 cm˛
Area (L x W)	38.7 in˛
Color	Light Gray, Clear Cover
Container Type	Box
Design	Stainless Steel Latch, Hinged Door
Features	Latches, Hinged, Lockable, Sealing Gasket
Height [z]	85 mm
Height [z]	3.346 in
Material	ABS Body, Plastic, Polycarbonate Cover
Material Flammability Rating	UL94 HB
Ratings	NEMA 4X, NEMA 6, IP66, IP67
Size / Dimension [x]	7.283 in
Size / Dimension [x]	185 mm
Size / Dimension [y]	135 mm
Size / Dimension [y]	5.315 in

BC-ATP Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W)	Ratings	Design	Material	Container Type	Material Flammability Rating	Features	Color	Area (L x W)	Thickness	Thickness	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]
Boxco BC-ATP-212113	8.268 in	210 mm	8.268 in	210 mm	5.118 in	130 mm	68.4 in˛	441 cm˛	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray
Boxco BC-ATP-354516	13.78 in	350 mm	17.717 in	450 mm	6.299 in	160 mm		1575 cm˛	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray	244 in˛	0.146 in	3.7 mm
Boxco BC-ATP-131808	5.315 in	135 mm	7.283 in	185 mm	3.346 in	85 mm		250 cm˛	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray	38.7 in˛
Boxco BC-ATP-304015	11.811 "	300 mm	15.748 "	400 mm		5.906 in			IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray				150 mm	1200 cm²	186 in²
Boxco BC-ATP-101507	3.937 in	100 mm	5.906 in	150 mm	2.756 "	70 mm		150 cm²	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray	23.3 in²
Boxco BC-ATP-131508	5.315 in		6.102 in	155 mm	3.346 in	85 mm		209 cm˛	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray	32.4 in˛						135 mm
Boxco BC-ATP-172211	6.693 "	170 mm	8.661 in	220 mm				374 cm²	IP66 IP67 NEMA 4X NEMA 6	Hinged Door Stainless Steel Latch	ABS Body Plastic Polycarbonate Cover	Box	UL94 HB	Hinged Latches Lockable Sealing Gasket	Clear Cover Light Gray	58 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.10

Description

General part information

BC-ATP Series

Box Plastic, ABS Body, Polycarbonate Cover Light Gray, Clear Cover Hinged Door, Stainless Steel Latch 7.283" L x 5.315" W (185.00mm x 135.00mm) X 3.346" (85.00mm)
