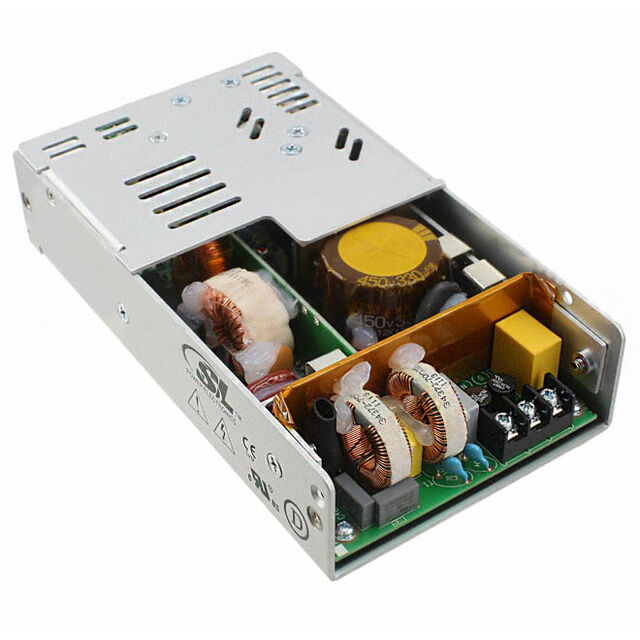

MINT1400A4810L01
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 48V 5.2A 400W MEDICAL 15-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MINT1400A4810L01
ActiveSL POWER / Advanced Energy
AC/DC POWER SUPPLY SINGLE-OUT 48V 5.2A 400W MEDICAL 15-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MINT1400A4810L01 |
|---|---|
| Applications | Medical |
| Approval Agency | CE, cURus |
| Current - Output 1 | 5.2 A |
| Efficiency | 88 % |
| Features | Universal Output, Remote Sense, Remote On/Off, Standby Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 250 W |
| Power (Watts) | 400 W |
| Size / Dimension [x] | 177.8 mm |
| Size / Dimension [x] | 7 " |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [z] | 40 mm |
| Size / Dimension [z] | 1.57 " |
| Type | Open Frame |
| Voltage - Input [Max] | 270 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MINT1400 Series
Open Frame AC DC Converters 1 Output 48V 80 ~ 270 VAC Input
