Technical Specifications
Parameters and characteristics for this part

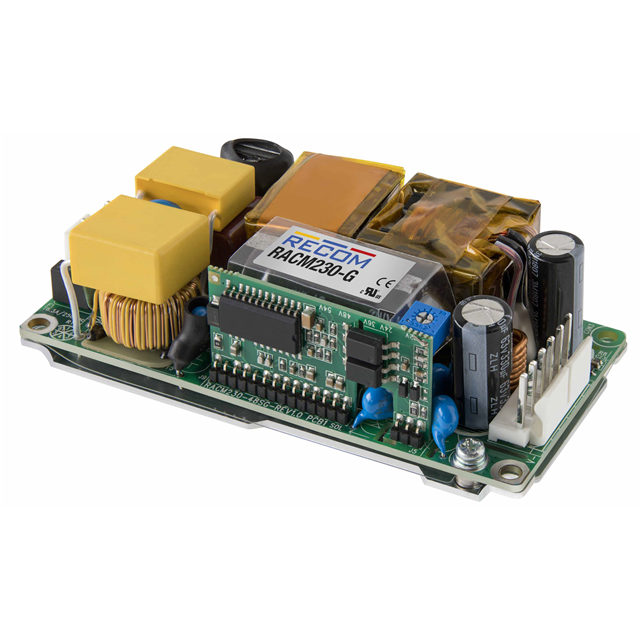

| Specification | RACM230-24SG |
|---|---|
| Applications | Household Appliances, ITE (Commercial), Medical |
| Approval Agency | CB, cURus, CE |
| Current - Output 1 | 9.58 A |
| Efficiency | 92 % |
| Features | Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 230 W |
| Size / Dimension [x] | 101.6 mm |
| Size / Dimension [x] | 4 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 32 mm |
| Size / Dimension [z] | 1.26 in |
| Standard Number | 60601-1, 60335-1, 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 80 VAC, 120 VDC |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RACM230-24 Series
Switching Power Supplies Med 230W 80-264Vin 36Vout 6.39A
