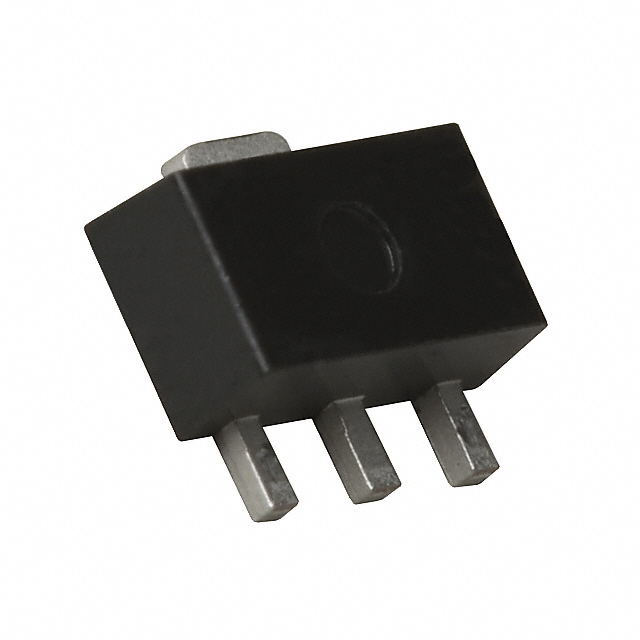

NE461M02-AZ

Obsolete

CEL

RF TRANS NPN 15V SOT89

Search across all available documentation for this part.

Obsolete

CEL

RF TRANS NPN 15V SOT89

Technical Specifications

Parameters and characteristics for this part

Specification	NE461M02-AZ

Current - Collector (Ic) (Max) [Max]	250 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	60
Gain	8.3 dBi
Mounting Type	Surface Mount
Noise Figure (dB Typ @ f) [Max]	2 dB
Noise Figure (dB Typ @ f) [Min]	1.5 dB
Operating Temperature	150 °C
Package / Case	TO-243AA
Power - Max [Max]	2 W
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	15 V

Part	Current - Collector (Ic) (Max) [Max]	Mounting Type	Noise Figure (dB Typ @ f) [Max]	Noise Figure (dB Typ @ f) [Min]	Operating Temperature	Power - Max [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Transistor Type	Package / Case	Gain	Voltage - Collector Emitter Breakdown (Max)
CEL NE461M02-T1-AZ	250 mA	Surface Mount	2 dB	1.5 dB	150 °C	2 W	60	NPN	TO-243AA	8.3 dBi	15 V
CEL NE461M02-AZ	250 mA	Surface Mount	2 dB	1.5 dB	150 °C	2 W	60	NPN	TO-243AA	8.3 dBi	15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Transistor NPN 15V 250mA 2W Surface Mount SOT-89
