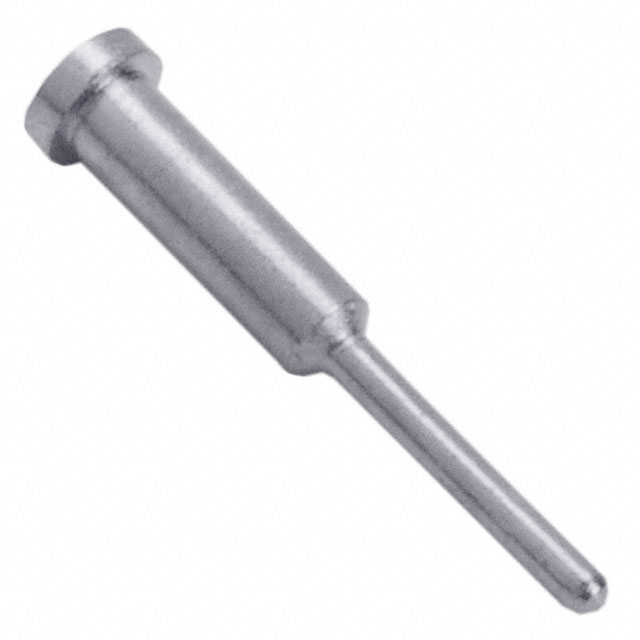

H3192-05 - H3192

H3192-05

Active
Harwin Inc.

PCB SOCKET, 1POS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetSub Miniature Sockets Spec Sheet+1
H3192-05 - H3192

H3192-05

Active
Harwin Inc.

PCB SOCKET, 1POS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheetSub Miniature Sockets Spec Sheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationH3192-05
Accepts Pin Diameter [Max]0.51 mm
Accepts Pin Diameter [Max]0.02 in
Accepts Pin Diameter [Min]0.46 mm
Accepts Pin Diameter [Min]0.018 in
Contact FinishGold
Contact MaterialBeryllium Copper
Flange Diameter [diameter]1.45 mm
Flange Diameter [diameter]0.057 in
Insertion Force [Max]6 N
Insertion Force [Min]2 N
Length - Overall [x]0.297 in
Length - Overall [x]7.54 mm
Mounting Hole Diameter [Max] [diameter]1.09 mm
Mounting Hole Diameter [Max] [diameter]0.043 in
Mounting Hole Diameter [Min] [diameter]0.039 in
Mounting Hole Diameter [Min] [diameter]0.99 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Socket Depth [z]3.15 mm
Socket Depth [z]0.124 "
Tail TypeStandard Tail
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 0.54
10$ 0.46
25$ 0.43
50$ 0.41
100$ 0.39
250$ 0.36
500$ 0.35
1000$ 0.33
3000$ 0.31
NewarkEach 1$ 0.52
10$ 0.42
100$ 0.34
500$ 0.30
1000$ 0.28
2500$ 0.26
5000$ 0.25

Description

General part information

H3192 Series

Pin Receptacle Connector 0.018" ~ 0.020" (0.46mm ~ 0.51mm) Standard Tail Solder
