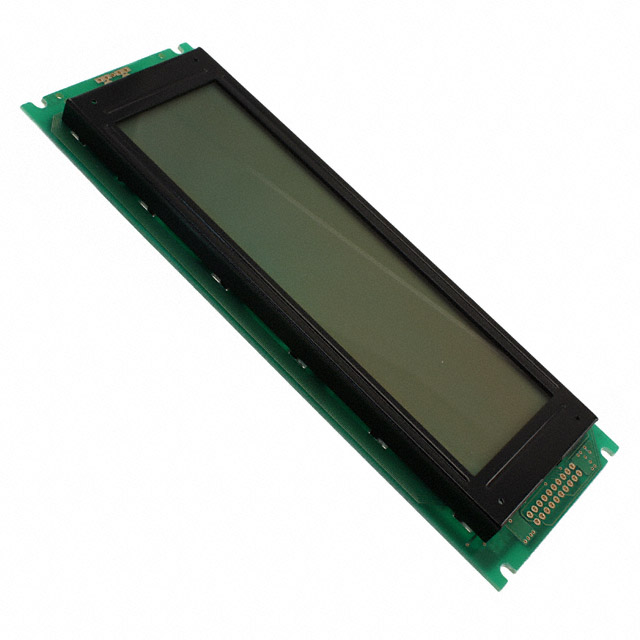

LCM-S24064GSF
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 240X64 W/LED
Deep-Dive with AI
Search across all available documentation for this part.
LCM-S24064GSF
ActiveLumex Opto/Components Inc.
LCD MOD GRAPHIC 240X64 W/LED
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LCM-S24064GSF |
|---|---|
| Background Color | Green |
| Display Mode | Transflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pitch [x] | 0.53 mm |
| Dot Pitch [y] | 0.53 mm |
| Dot Pixels [x] | 240 pixels |
| Dot Pixels [y] | 64 |
| Dot Size [custom] | 0.49 mm |
| Dot Size [custom] | 0.49 mm |
| Graphics Color | Gray |
| Interface | Parallel, 8-Bit |
| Viewing Area [custom] | 40.51 mm |
| Viewing Area [custom] | 133.99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 74.76 | |
| 15 | $ 69.92 | |||
| 105 | $ 64.08 | |||
Description
General part information
LCM-S24064 Series
Graphic LCD Display Module Transflective Gray STN - Super-Twisted Nematic Parallel, 8-Bit 240 x 64
Documents
Technical documentation and resources
No documents available
