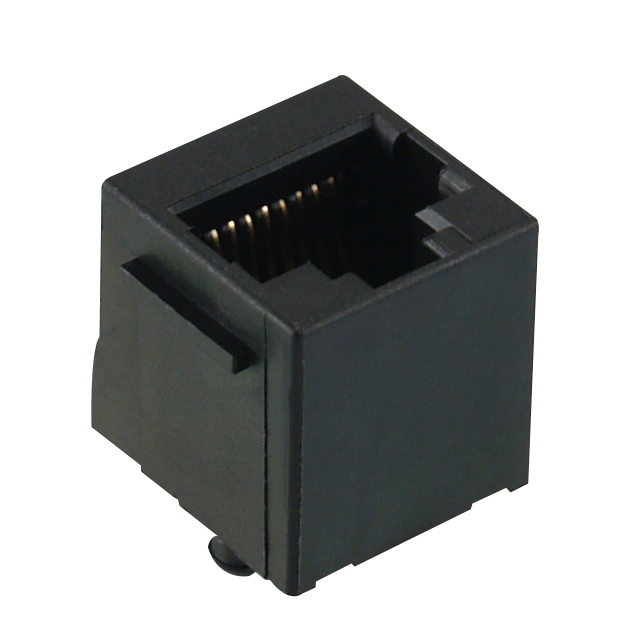

GDCX-PA-88

Active

Kycon, Inc.

MODJACK PERPEND 8P8C P/STOPS BLK

Search across all available documentation for this part.

Active

Kycon, Inc.

MODJACK PERPEND 8P8C P/STOPS BLK

Technical Specifications

Parameters and characteristics for this part

Specification	GDCX-PA-88

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Board Lock, Panel Stop, Board Guide
Housing Material	Polybutylene Terephthalate (PBT)
LED Color	Does Not Contain LED
Mounting Type	Through Hole
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Vertical
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Solder

Part	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Features	Termination	Housing Material	Connector Type	Number of Ports	Shielding	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Finish	Tab Direction	Mounting Type	Number of Positions/Contacts	LED Color	Contact Finish Thickness
Kycon, Inc. GDCX-PA-64-50	50 µin	1.27 µm	Phosphor Bronze	Board Guide Board Lock Panel Stop	Solder	Polybutylene Terephthalate (PBT)	Jack	1	Unshielded	Vertical	85 °C	-40 °C	1	Gold	User Selectable	Through Hole	6p4c	Does Not Contain LED
Kycon, Inc. GDCX-PA-88			Phosphor Bronze	Board Guide Board Lock Panel Stop	Solder	Polybutylene Terephthalate (PBT)	Jack	1	Unshielded	Vertical	85 °C	-40 °C	1	Gold	User Selectable	Through Hole	8p8c (RJ45 Ethernet)	Does Not Contain LED	Flash
