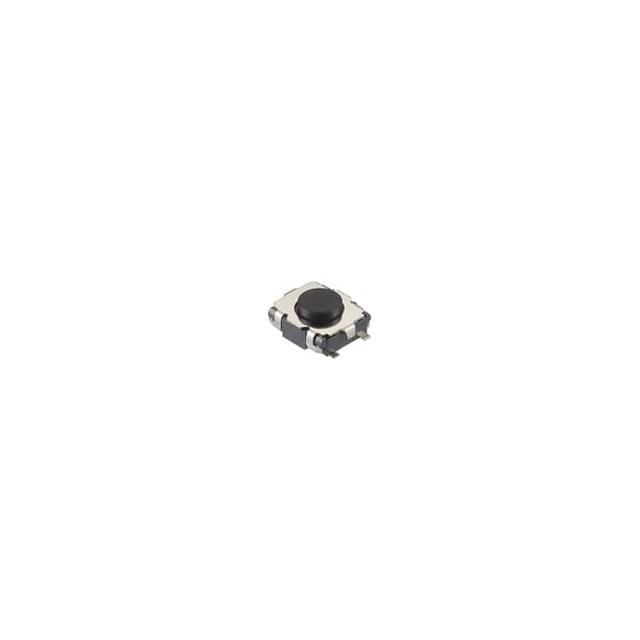

SKSGAAE010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKSGAAE010

Actuator Height off PCB, Vertical	1.4 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	200000 Cycles
Mounting Type	Surface Mount
Operating Force	408 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Outline [x]	3 mm
Outline [y]	2.7 mm
Switch Function	Off-Mom
Switch Travel	0.12 mm
Termination Style	SMD (SMT) Tab

Part	Switch Function	Mounting Type	Actuator Height off PCB, Vertical	Operating Temperature [Max]	Operating Temperature [Min]	Outline [x]	Outline [y]	Actuator Orientation	Switch Travel	Termination Style	Operating Force	Actuator Type	Contact Rating @ Voltage	Illumination	Circuit	Mechanical Life
Alps Alpine SKSGAAE010	Off-Mom	Surface Mount	1.4 mm	85 °C	-40 °C	3 mm	2.7 mm	Top Actuated	0.12 mm	SMD (SMT) Tab	408 gf	Standard	0.05 A 12 VDC	Non-Illuminated	SPST-NO	200000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Surface Mount
