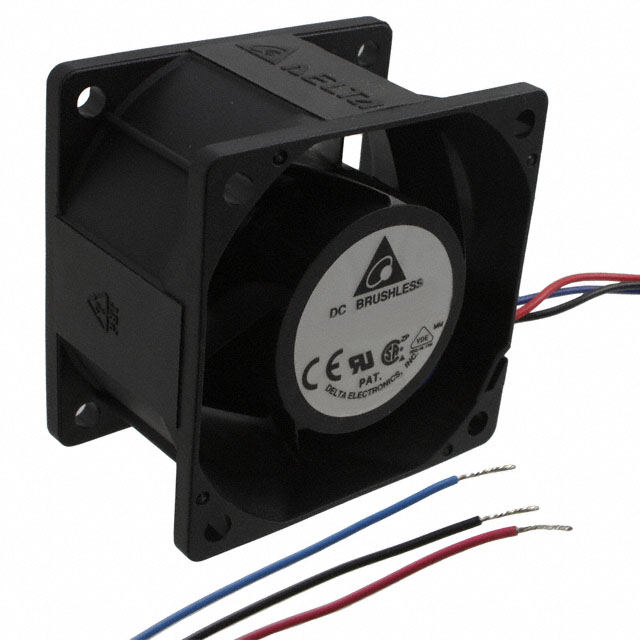

PFB0624EHE-F00

Active

Delta Electronics

FAN AXIAL 60X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN AXIAL 60X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	PFB0624EHE-F00

Air Flow	1.41 mł/min
Air Flow	50.4 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	360 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	54 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	8.64 W
RPM	9000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	1.203 in H2O
Static Pressure	299.7 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	130.18 g
Weight	0.287 lb
Width [y]	38 mm

Part	Power (Watts)	Voltage - Rated	Lifetime @ Temp.	Material - Frame	Current Rating (Amps)	Material - Blade	Approval Agency	Termination	Voltage Range [Max]	Voltage Range [Min]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	Noise	Weight	Weight	Width [y]	Bearing Type	Size / Dimension [x]	Size / Dimension [y]	RPM	Fan Type	Air Flow	Air Flow	Features
Delta Electronics PFB0624SHE	6.72 W	24 VDC	70000 Hrs	Plastic	0.28 A	Plastic	CE CSA UL VDE	2 Wire Leads	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	228.7 Pa	0.918 in H2O	50.5 dB(A)	130.18 g	0.287 lb	38 mm	Ball	60 mm	60 mm	8000 RPM	Tubeaxial	43.6 CFM	1.22 m³/min
Delta Electronics PFB0624EHE-F00	8.64 W	24 VDC	70000 Hrs	Plastic	360 mA	Plastic	CE CSA UL VDE	3 Wire Leads	26.4 VDC	14 VDC	-10 °C	-10 °C	60 °C	60 °C	299.7 Pa	1.203 in H2O	54 dB	130.18 g	0.287 lb	38 mm	Ball	60 mm	60 mm	9000 RPM	Tubeaxial	50.4 CFM	1.41 mł/min	Locked Rotor Protection Speed Sensor (Tach)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 50.4 CFM (1.41m³/min) 3 Wire Leads
