7198-1513-000

Active

Radiall USA, Inc.

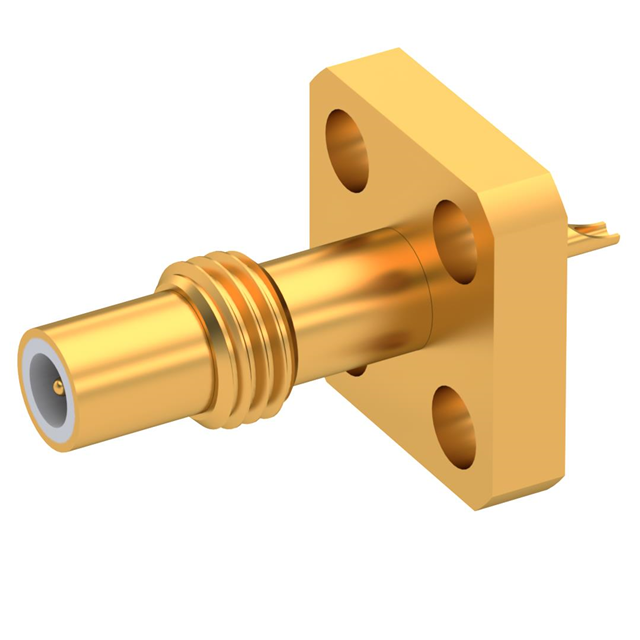

SSMC / STRAIGHT RECEPTACLE MALE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMC / STRAIGHT RECEPTACLE MALE

Technical Specifications

Parameters and characteristics for this part

Specification	7198-1513-000

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMC
Connector Type	Male Pin, Receptacle
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	12.4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Connector Style	Center Contact Material	Shield Termination	Impedance	Voltage Rating	Mating Cycles	Contact Termination	Number of Ports	Housing Color	Mounting Feature	Center Contact Plating	Frequency - Max [Max]	Body Material	Connector Type	Body Finish	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]
Radiall USA, Inc. 7198-1513-000	SSMC	Beryllium Copper	Solder	50 Ohms	250 VDC	500	Solder Cup	1	Gold	Flange	Gold	12.4 GHz	Stainless Steel	Male Pin Receptacle	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 47.10

General part information

SSMC Connector Receptacle, Male Pin 50 Ohms Panel Mount Solder Cup
