A8430EEKTR-T

Obsolete

Allegro MicroSystems

IC LED DRVR RGLTR PWM 20MA 5MLPD

Search across all available documentation for this part.

Obsolete

Allegro MicroSystems

IC LED DRVR RGLTR PWM 20MA 5MLPD

Technical Specifications

Parameters and characteristics for this part

Specification	A8430EEKTR-T

Applications	Backlight
Current - Output / Channel [custom]	20 mA
Dimming	PWM
Frequency	1.2 MHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

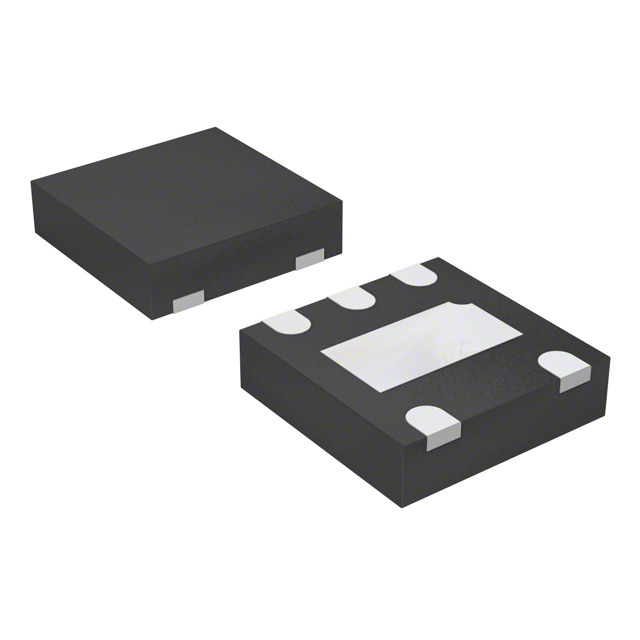

Package / Case	5-WDFN Exposed Pad
Supplier Device Package	5-MLPD (3x3)
Topology	Step-Up (Boost)
Type	DC DC Regulator
Voltage - Output	36 V
Voltage - Supply (Max) [Max]	10 V
Voltage - Supply (Min) [Min]	2.5 V

Part	Applications	Voltage - Supply (Min) [Min]	Supplier Device Package	Dimming	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output	Package / Case	Type	Voltage - Supply (Max) [Max]	Current - Output / Channel [custom]	Topology	Internal Switch(s)	Mounting Type	Frequency
Allegro MicroSystems A8430EEKTR-T	Backlight	2.5 V	5-MLPD (3x3)	PWM	85 °C	-40 °C	1	36 V	5-WDFN Exposed Pad	DC DC Regulator	10 V	20 mA	Step-Up (Boost)		Surface Mount	1.2 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) PWM Dimming 20mA 5-MLPD (3x3)
