2821164
ActivePhoenix Contact

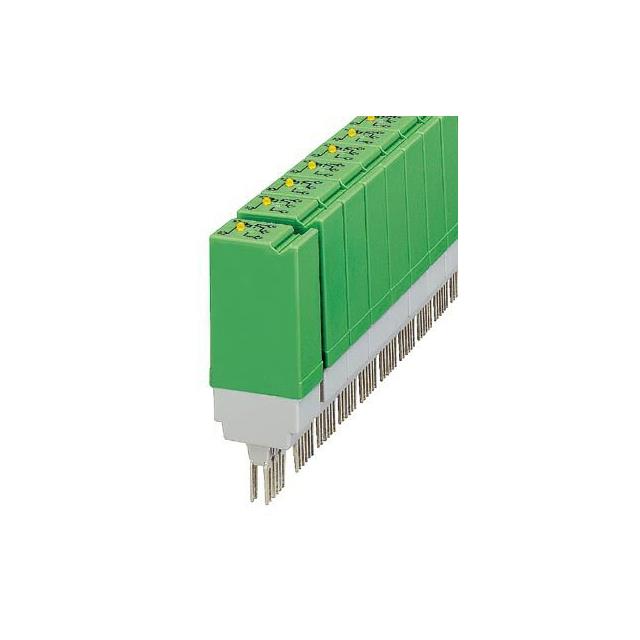

INDUSTRIAL RELAYS ST-REL3-KG120/21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2821164
ActivePhoenix Contact
INDUSTRIAL RELAYS ST-REL3-KG120/21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2821164 |
|---|---|
| Coil Current | 5 mA |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC, 120 VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 6 A |
| Mounting Type | Socketable |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 50 °C |
| Operating Temperature [Min] | -20 C |
| Relay Type | General Purpose |
| Release Time | 11 ms |
| Switching Voltage | 250 VAC, 250 VDC |
| Termination Style | Plug In |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 173.89 | |
| 10 | $ 159.98 | |||
| 50 | $ 147.81 | |||
Description
General part information
28211 Series
General Purpose Relay SPDT (1 Form C) 120VAC/DC Coil Socketable
Documents
Technical documentation and resources
