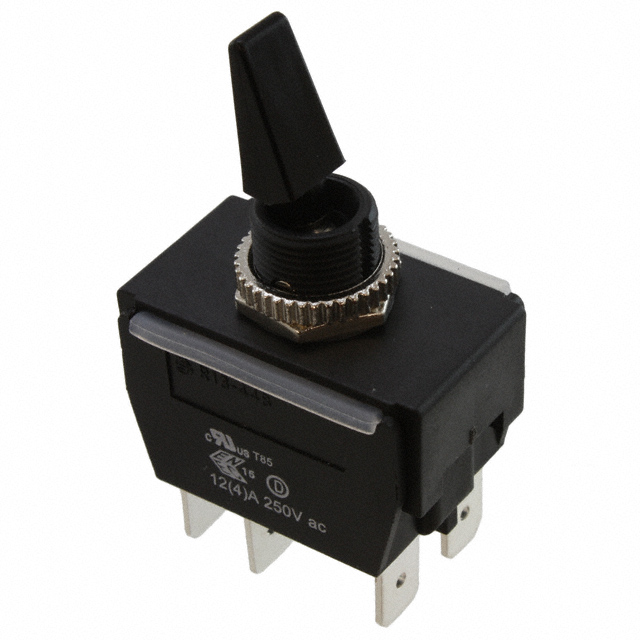

GTS448B301AHR
ActiveCW Industries
SWITCH TOGGLE DPDT 12A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GTS448B301AHR
ActiveCW Industries
SWITCH TOGGLE DPDT 12A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GTS448B301AHR |
|---|---|
| Actuator Length [x] | 17 mm |
| Actuator Type | Flatted |
| Bushing Thread | 15/32-32 |
| Circuit | DPDT |
| Current Rating (Amps) | 12 A |
| Electrical Life | 10000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP56 - Dust Protected, Water Resistant |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [diameter] | 12.2 mm |
| Switch Function | On-On |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.38 | |
| 10 | $ 7.23 | |||
| 25 | $ 6.82 | |||
| 50 | $ 6.52 | |||
| 100 | $ 6.24 | |||
| 250 | $ 5.88 | |||
| 500 | $ 5.62 | |||
| 1000 | $ 5.38 | |||
Description
General part information
GTS448B Series
Toggle Switch DPDT Panel Mount
