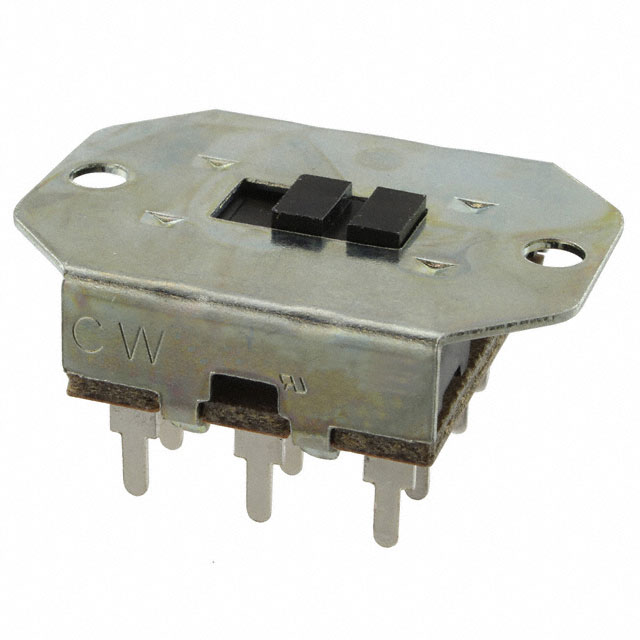

GF-642-0022
ActiveCW Industries
SWITCH SLIDE 4PDT 6A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GF-642-0022
ActiveCW Industries
SWITCH SLIDE 4PDT 6A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-642-0022 |
|---|---|
| Actuator Length [x] | 0.79 mm |
| Actuator Material | Polyamide (PA66), Nylon 6/6 |
| Actuator Type | Screwdriver Slot |
| Circuit | 4PDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Contact Timing | Not Specified |
| Current Rating (Amps) | 500 mA, 6 A |
| Electrical Life | 6000 Cycles |
| Features | No Marking |
| Mechanical Life | 10000 Steps |
| Operating Temperature [Max] | 104 °C |
| Operating Temperature [Min] | -10 °C |
| Switch Function | On-On (Line Voltage Selector) |
| Switch Travel | 4.01 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 500 | $ 2.23 | |
Description
General part information
GF-642 Series
Slide Switch 4PDT Panel Mount
