0213.200TXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE 250V IEC TD LBC 5X20 ROHS 200MA/ BULK
Deep-Dive with AI
Search across all available documentation for this part.
0213.200TXP
ActiveLittelfuse/Commercial Vehicle Products
FUSE 250V IEC TD LBC 5X20 ROHS 200MA/ BULK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0213.200TXP |
|---|---|
| Breaking Capacity @ Rated Voltage | 35 A |
| Current Rating (Amps) | 0.2 A |
| DC Cold Resistance | 1.6 Ohms |
| Melting I˛t | 0.225 |
| Mounting Type | Requires Holder |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case [x] | 5 mm |
| Package / Case [y] | 20 mm |
| Response Time | Slow Blow |
| Size / Dimension [diameter] | 5.2 mm |
| Size / Dimension [diameter] | 0.205 in |
| Size / Dimension [x] | 0.787 in |
| Size / Dimension [x] | 20 mm |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
0213.200 Series

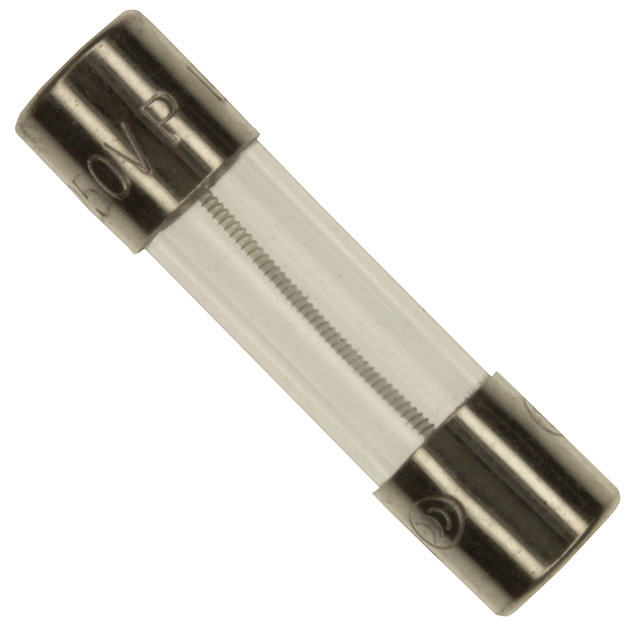

The 213 Series is a 5x20mm time-lag, surge-withstand, glass body cartridge fuse that is designed to IEC specifications.
