OPB890P55Z

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

Active

TT Electronics/Optek Technology

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	OPB890P55Z

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max)	50 mA
Mounting Type	Chassis Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Phototransistor
Package / Case	Module, Pre-Wired
Sensing Distance	0.125 "
Sensing Distance	3.18 mm
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Current - DC Forward (If) (Max)	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Type	Output Configuration	Package / Case	Mounting Type
TT Electronics/Optek Technology OPB890T51Z	Through-Beam	50 mA	30 mA	30 V	85 °C	-40 °C	0.125 "	3.18 mm	Unamplified	Phototransistor	PCB Mount	Chassis Mount
TT Electronics/Optek Technology OPB890P55Z	Through-Beam	50 mA	30 mA	30 V	85 °C	-40 °C	0.125 "	3.18 mm	Unamplified	Phototransistor	Module Pre-Wired	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

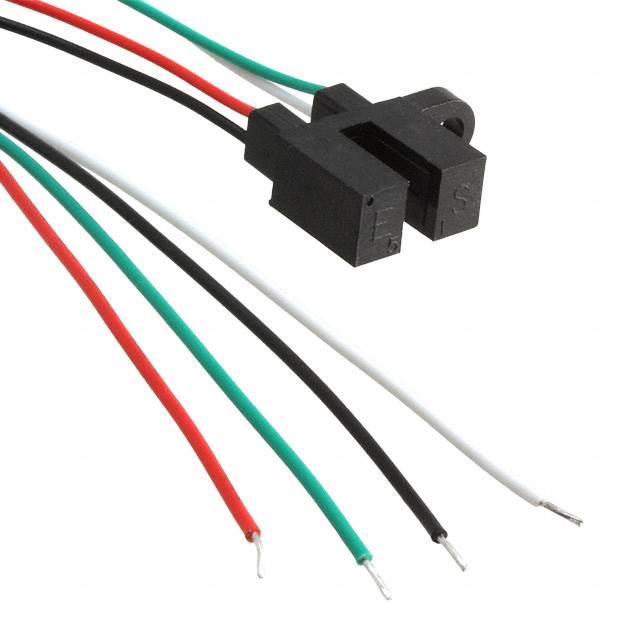

Optical Sensor Through-Beam 0.125" (3.18mm) Phototransistor Module, Pre-Wired
