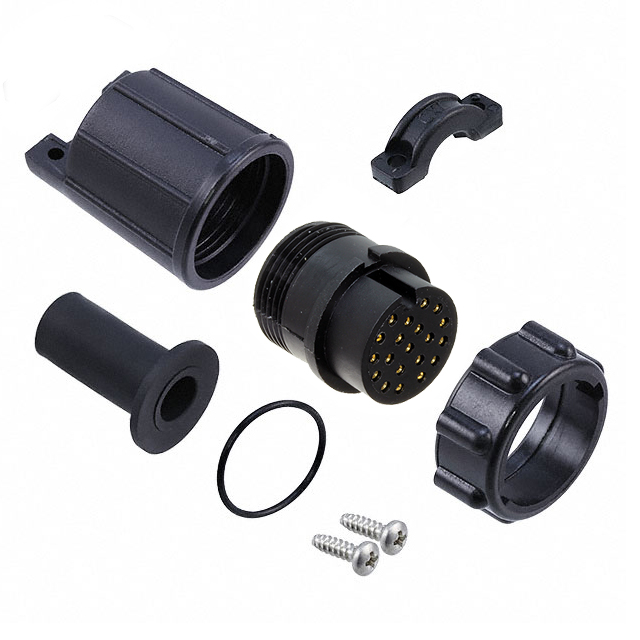

13282-20SG-331

Active

Conxall/Switchcraft

CONN PLUG FMALE 20P SOLDER CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 20P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish - Mating	Contact Material	Features	Color	Orientation	Backshell Material, Plating	Connector Type	Voltage Rating	Number of Positions	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Ingress Protection	Mounting Type	Primary Material	Fastening Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Conxall/Switchcraft 13282-20SG-331	Gold	Brass	Backshell Cable Clamp	Black	Keyed	Nylon Polyamide (PA)	Female Sockets Plug	600 V	20	9.65 mm	0.31 in 0.38 in	7.87 mm	Weathertight	Free Hanging (In-Line)	Plastic	Bayonet Lock	Unshielded	-40 °C	115 °C
Conxall/Switchcraft 13282-20SG-326	Gold	Brass	Backshell Cable Clamp	Black	Keyed	Nylon Polyamide (PA)	Female Sockets Plug	600 V	20				Weathertight	Free Hanging (In-Line)	Plastic	Bayonet Lock	Unshielded	-40 °C	115 °C	0.26 in	7.62 mm	0.3 in	6.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Circular Connector Plug, Female Sockets Solder Cup
