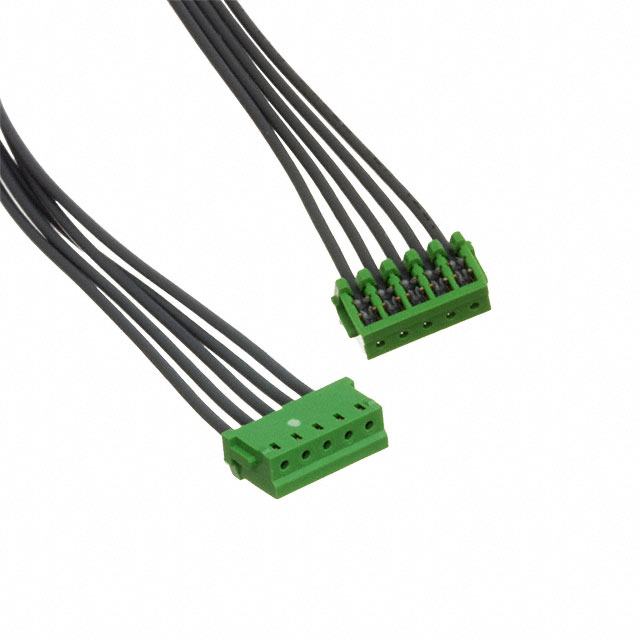

A05ZR05ZR28H305A

Active

JST Sales America Inc.

JUMPER 05ZR-8M-P - 05ZR-8M-P 12"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 05ZR-8M-P - 05ZR-8M-P 12"

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Contact Finish	Connector Type	Number of Rows	Pitch - Connector	Pitch - Connector	Color	Length	Length	Length	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A05ZR05ZR28H51A	IDC	Tin	Socket to Socket Reversed	1	0.059 "	1.5 mm	Gray Individual	50.8 mm	2 "	0.167 '
JST Sales America Inc. A05ZR05ZR28H254A	IDC	Tin	Socket to Socket Reversed	1	0.059 "	1.5 mm	Gray Individual	254 mm	10 in	0.833 ft
JST Sales America Inc. A05ZR05ZR28H102B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual				4 "	0.333 ft	101.6 mm
JST Sales America Inc. A05ZR05ZR28H254B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual	254 mm	10 in	0.833 ft
JST Sales America Inc. A05ZR05ZR28H305A	IDC	Tin	Socket to Socket Reversed	1	0.059 "	1.5 mm	Gray Individual	304.8 mm		1 ft
JST Sales America Inc. A05ZR05ZR28H203B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual	203.2 mm	8 in	0.667 ft
JST Sales America Inc. A05ZR05ZR28H102A	IDC	Tin	Socket to Socket Reversed	1	0.059 "	1.5 mm	Gray Individual				4 "	0.333 ft	101.6 mm
JST Sales America Inc. A05ZR05ZR28H152B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual	152.4 mm	6 "					0.5 '
JST Sales America Inc. A05ZR05ZR28H305B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual	304.8 mm		1 ft
JST Sales America Inc. A05ZR05ZR28H51B	IDC	Tin	Socket to Socket	1	0.059 "	1.5 mm	Gray Individual	50.8 mm	2 "	0.167 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.00' (304.80mm)
