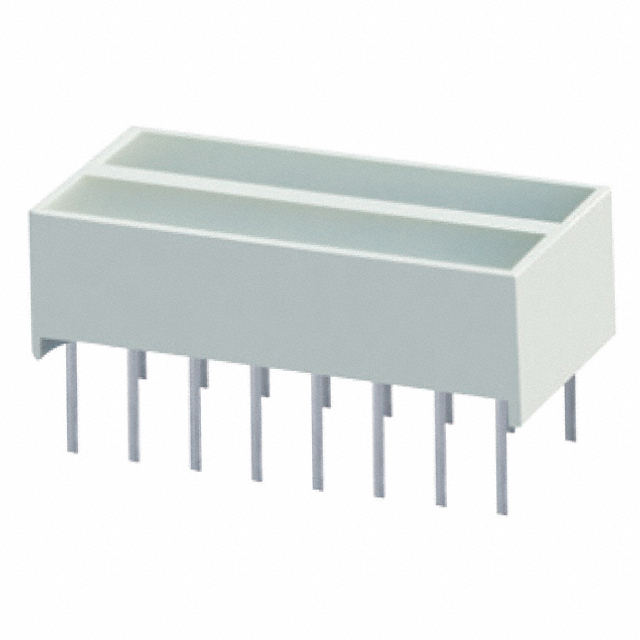

XEMRF100M

Obsolete

SunLED

LED CBI 19.05X3.81MM 2SEG R VERT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XEMRF100M

Obsolete

SunLED

LED CBI 19.05X3.81MM 2SEG R VERT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XEMRF100M

Color	Red
Configuration	DIP, Bar - 2 High
Current	155 mA
Lens Size [x]	19.05 mm
Lens Size [y]	3.81 mm
Lens Style	Rectangle with Flat Top
Lens Type	Diffused, White
Millicandela Rating	24 mcd
Mounting Type	Through Hole
Voltage Rating	1.85 V
Wavelength - Peak	655 nm

XEMRF100 Series

Part	Current	Wavelength - Peak	Configuration	Mounting Type	Lens Size [y]	Lens Size [x]	Color	Voltage Rating	Lens Type	Lens Style	Millicandela Rating
SunLED XEMRF100M	155 mA	655 nm	Bar - 2 High DIP	Through Hole	3.81 mm	19.05 mm	Red	1.85 V	Diffused White	Rectangle with Flat Top	24 mcd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XEMRF100 Series

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 2 High, DIP Red (x 2) Diffused, White 1.85V 155mA Rectangle with Flat Top 19.05mm x 3.81mm Through Hole

Documents

Technical documentation and resources
