09150006403

Active

HARTING Technology Group

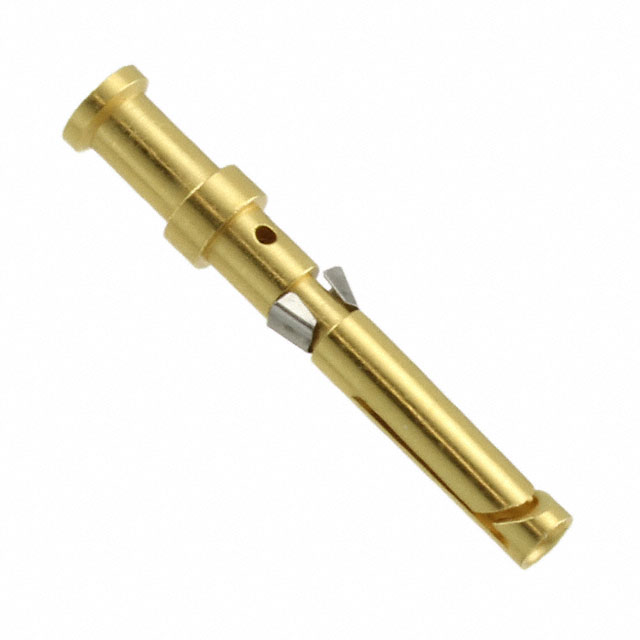

HEAVY DUTY CONNECTOR CONTACT, HAN-GOLDTEC®, HAN D SERIES, SOCKET, 20 AWG, CRIMP, 10 A, COPPER ALLOY

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR CONTACT, HAN-GOLDTEC®, HAN D SERIES, SOCKET, 20 AWG, CRIMP, 10 A, COPPER ALLOY

Technical Specifications

Parameters and characteristics for this part

Part	Wire Gauge [Min]	Wire Gauge [Max]	Type	Contact Finish	Pin or Socket	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge
HARTING Technology Group 09150006171	22 AWG	26 AWG	Machined	Gold	Pin	Crimp
HARTING Technology Group 09150006211
HARTING Technology Group 09150006105			Machined	Silver	Pin	Crimp	3 µm	118.1 µin	18 AWG
HARTING Technology Group 09150006106			Machined	Silver	Pin	Crimp	3 µm	118.1 µin	13.5 AWG
HARTING Technology Group 09150006271	22 AWG	26 AWG	Machined	Gold	Socket	Crimp
HARTING Technology Group 09150006297			Machined	Silver	Socket	Solder
HARTING Technology Group 09150006121			Machined	Gold	Pin	Crimp	2 µm	78.7 µin	16 AWG
HARTING Technology Group 09150006403			Machined	Gold	Socket	Crimp	2 µm	78.7 µin	20 AWG
HARTING Technology Group 09150006182					Pin	Crimp
HARTING Technology Group 09150006151					Pin	Wire Wrap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Contact Crimp Socket 20 AWG Gold

Technical documentation and resources
