19431100527
ActiveHARTING Technology Group

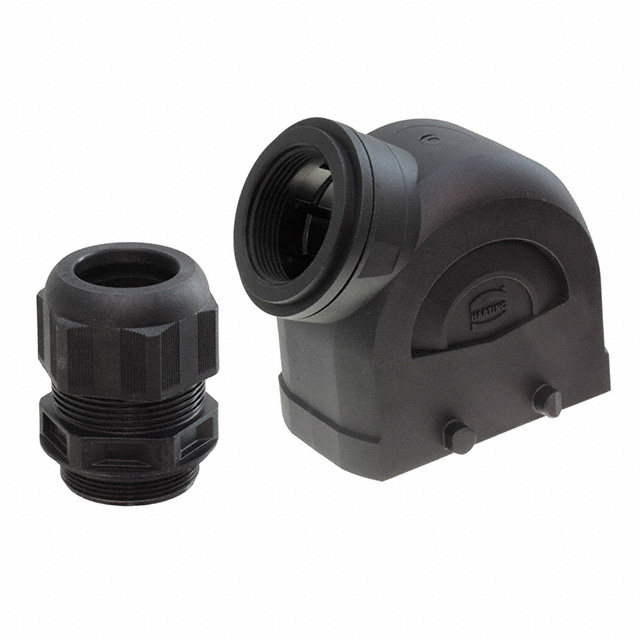

ENCLOSURE FOR CONNECTORS: HDC; IP66; FOR CABLE; HAN-ECO® B; M32
Deep-Dive with AI
Search across all available documentation for this part.
19431100527
ActiveHARTING Technology Group
ENCLOSURE FOR CONNECTORS: HDC; IP66; FOR CABLE; HAN-ECO® B; M32
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19431100527 |
|---|---|
| Connector Type | Hood |
| Housing Color | Black |
| Housing Material | Polyamide (PA), Nylon, Glass Filled |
| Ingress Protection | IP66 |
| Lock Location | Locking Clip (2) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 10B |
| Style | Side Entry |
| Thread Size | M32 |
19431100 Series
| Part | Housing Color | Size | Connector Type | Ingress Protection | Style | Lock Location | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | Black | 10B | Hood | IP66 | Top Entry | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M25 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Top Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M25 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Side Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M32 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Top Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M32 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Side Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M20 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Side Entry | Locking Clip (2) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M32 |
HARTING Technology Group | Black | 10B | Hood | IP66 | Top Entry | Locking Clip (1) on Base Bottom | 125 °C | -40 °C | Polyamide (PA) Nylon Glass Filled | M20 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19431100 Series
Hood Connector Side Entry M32 10B IP66 - Dust Tight, Water Resistant
