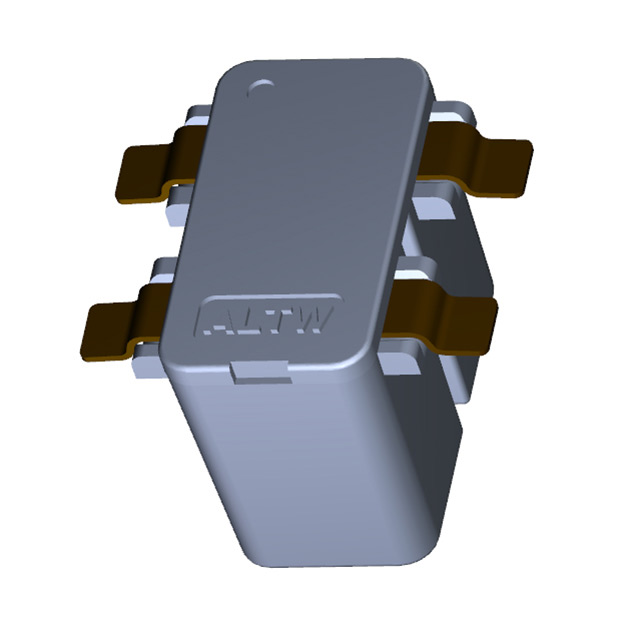

SSL21-J2E00-000001

Obsolete

Amphenol LTW

CONN SSL RCPT 2POS 6.7MM SOLDER

Search across all available documentation for this part.

Obsolete

Amphenol LTW

CONN SSL RCPT 2POS 6.7MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	SSL21-J2E00-000001

Connector Type	Receptacle
Contact Finish	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	12 A
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP)
Mating Cycles	20
Mounting Type	Board Cutout, Right Angle, Surface Mount
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.264 in
Pitch [x]	6.71 mm
Style	Board to Board - Card Edge
Termination	Solder
Voltage Rating	100 V

Part	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Housing Material	Mating Cycles	Connector Type	Current Rating (Amps)	Contact Finish	Termination	Style	Contact Material	Number of Positions	Voltage Rating	Housing Color	Mounting Type
Amphenol LTW SSL21-J2E00-000001	0.264 in	6.71 mm	-40 °C	105 ░C	Liquid Crystal Polymer (LCP)	20	Receptacle	12 A	Gold	Solder	Board to Board - Card Edge	Copper Alloy	2	100 V	White	Board Cutout Right Angle Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SSL Connector 2 Position Receptacle Board to Board - Card Edge 0.264" (6.71mm) Solder
