Q-2403F000H009i

Active

Amphenol Custom Cable

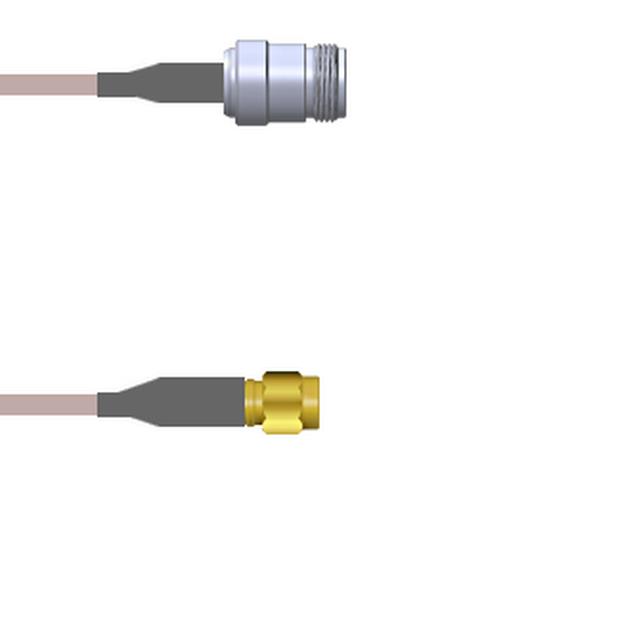

COAX CBL SMA TO N-TYPE 9"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL SMA TO N-TYPE 9"

Technical Specifications

Parameters and characteristics for this part

Part	Features	1st Contact Gender	Style	1st Connector	2nd Connector Mounting Type	2nd Contact Gender	Cable Type	1st Connector Mounting Type	Color	Overall Impedance	Length	Length	2nd Connector	Frequency - Max [Max]	Length
Amphenol Custom Cable Q-2403F000H009i	Shielded	Male	SMA to N-Type	SMA Plug	Free Hanging (In-Line)	Female	RG-142	Free Hanging (In-Line)	Copper	50 Ohms	9 "	228.6 mm	N-Type Jack	11 GHz
Amphenol Custom Cable Q-2403F000H072i	Shielded	Male	SMA to N-Type	SMA Plug	Free Hanging (In-Line)	Female	RG-142	Free Hanging (In-Line)	Copper	50 Ohms	72 in	1.8 m	N-Type Jack	11 GHz	6 ft
Amphenol Custom Cable Q-2403F000H002M	Shielded	Male	SMA to N-Type	SMA Plug	Free Hanging (In-Line)	Female	RG-142	Free Hanging (In-Line)	Copper	50 Ohms	78.7 in	2 m	N-Type Jack	11 GHz	6.6 ft
Amphenol Custom Cable Q-2403F000H108i	Shielded	Male	SMA to N-Type	SMA Plug	Free Hanging (In-Line)	Female	RG-142	Free Hanging (In-Line)	Copper	50 Ohms	108 in	2.7 m	N-Type Jack	11 GHz	9 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial SMA to N-Type RG-142 9.000" (228.60mm)

Technical documentation and resources

No documents available
