127-1701-221

Active

Cinch Connectivity Solutions Johnson

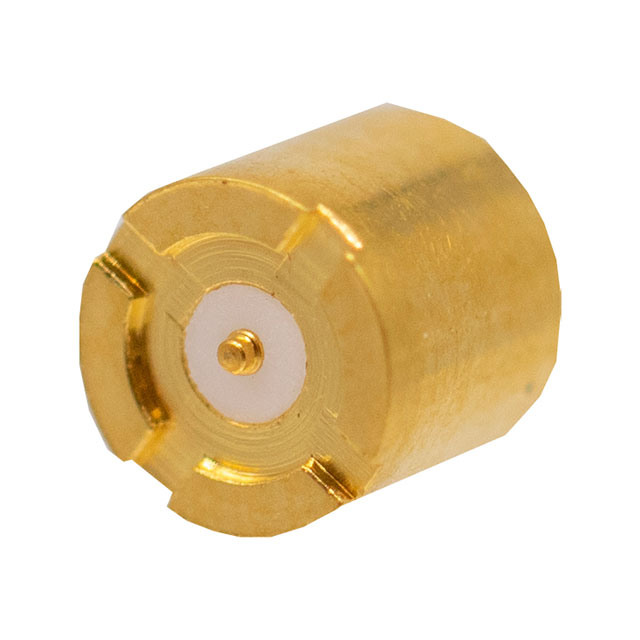

SMP MALE, STRAIGHT SURFACE MOUNT

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

SMP MALE, STRAIGHT SURFACE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	127-1701-221

Body Finish	Gold
Body Material	Beryllium Copper
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Limited Detent
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	325 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Connector Type	Features	Number of Ports	Mating Cycles	Fastening Type	Voltage Rating	Impedance	Body Material	Contact Termination	Center Contact Material	Dielectric Material	Body Finish	Frequency - Max [Max]	Mounting Type	Housing Color	Center Contact Plating
Cinch Connectivity Solutions Johnson 127-1701-221	-65 ░C	165 °C	Solder	Male Pin Plug	Limited Detent	1	500	Snap-On	325 V	50 Ohms	Beryllium Copper	Solder	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	18 GHz	Surface Mount	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP Connector Plug, Male Pin 50 Ohms Surface Mount Solder
