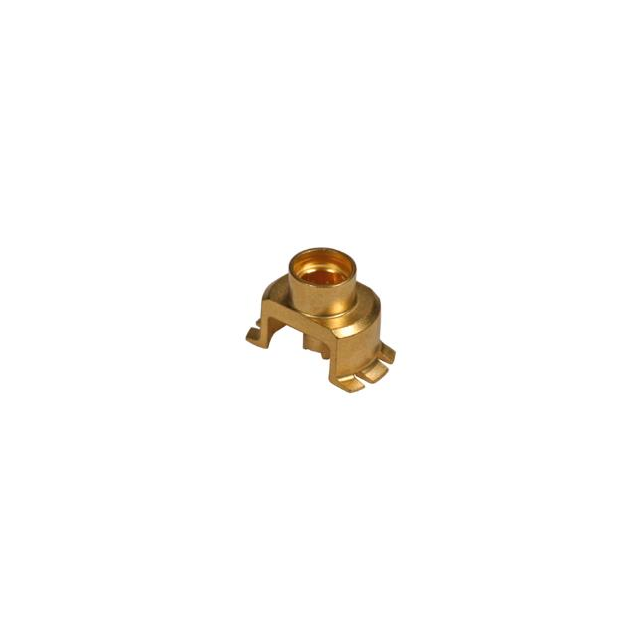

82_MMPX-S50-0-2/111_NM

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Huber+Suhner, Inc.

RF COAX CONN, JACK, PCB, 50 OHM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	82_MMPX-S50-0-2/111_NM

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMPX
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	67 GHz
Housing Color	Gold
Impedance	50 Ohms
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

Part	Body Material	Dielectric Material	Connector Style	Connector Type	Frequency - Max [Max]	Housing Color	Impedance	Center Contact Plating	Body Finish	Mounting Type	Shield Termination	Center Contact Material	Number of Ports	Contact Termination	Fastening Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Huber+Suhner, Inc. 82_MMPX-S50-0-2/111_NM	Brass	Polytetrafluoroethylene (PTFE)	MMPX	Female Socket Jack	67 GHz	Gold	50 Ohms	Gold	Gold	Surface Mount	Solder	Beryllium Copper Brass	1	Solder	Snap-On	170 V	155 °C	-65 ░C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

MMPX Connector Jack, Female Socket 50 Ohms Surface Mount Solder
