ACC19-M20

Active

Panduit Corp

CORD CLIPS NO ADHESIVE, .19" (4.8MM) BUN ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

CORD CLIPS NO ADHESIVE, .19" (4.8MM) BUN ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Length [x]	Length [x]	Opening Size	Opening Size [z]	Height [z]	Height [z]	Mounting Type	Type	Color	Adhesive	Material	Width	Width	Features
Panduit Corp ACC19-A-M20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Black	Rubber Based	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-M20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Black	User Supplied	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-C20	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Black	Rubber Based	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-L	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Natural	Rubber Based	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-A-C	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Natural	Rubber Based	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "
Panduit Corp ACC19-AT-M0	0.63 in	16 mm	4.83 mm	0.19 in	6.35 mm	6.35 mm	Adhesive	C-Type Clip	Black	Acrylic Based	Polyamide (PA66) Nylon 6/6	19.3 mm	0.76 "	Weather Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

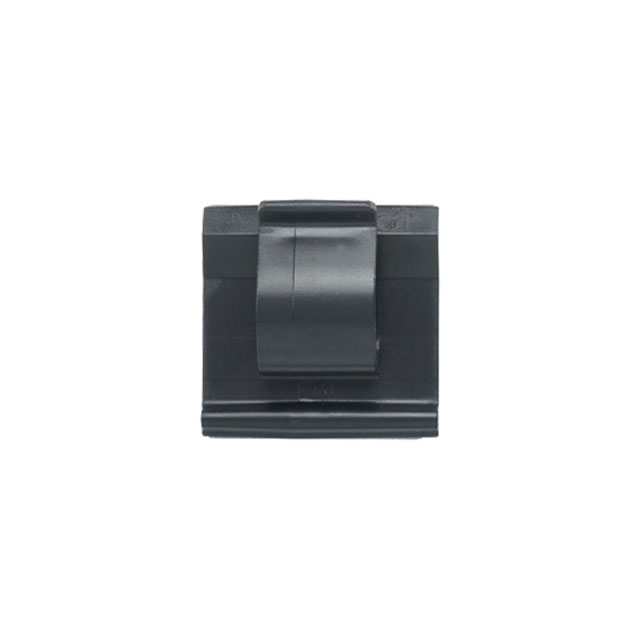

Cable Clip, C-Type Black Adhesive 0.190" (4.83mm)

Technical documentation and resources
