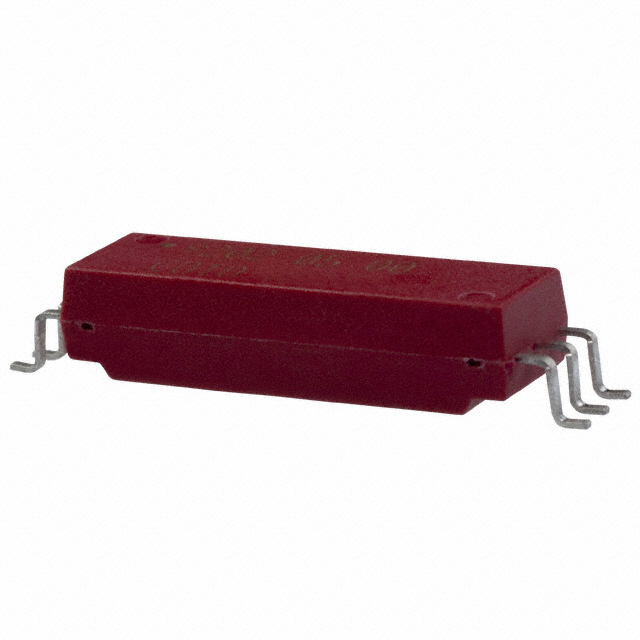

9202-05-00

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Search across all available documentation for this part.

Active

Coto Technology

RELAY RF SPST-NO 500MA 5V

Technical Specifications

Parameters and characteristics for this part

Part	Contact Form	Release Time	Features	Coil Resistance	Must Operate Voltage	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Must Release Voltage	Coil Voltage	Contact Rating (Current)	Coil Type	Mounting Type	Coil Current	Termination Style	Switching Voltage
Coto Technology 9202-12-20TR	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	650 Ohms	9 VDC	0.4 ms	85 °C	-20 C	1 VDC	12 VDC	0.5 A	Non Latching	Surface Mount	18.5 mA	J Lead	200 VDC 200 VAC
Coto Technology 9202-05-00	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	150 Ohms	3.75 VDC	0.4 ms	85 °C	-20 C	0.4 VDC	5 VDC	0.5 A	Non Latching	Surface Mount	33.3 mA	Gull Wing	200 VDC 200 VAC
Coto Technology 9202-12-00	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	650 Ohms	9 VDC	0.4 ms	85 °C	-20 C	1 VDC	12 VDC	0.5 A	Non Latching	Surface Mount	18.5 mA	Gull Wing	200 VDC 200 VAC
Coto Technology 9202-12-20	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	650 Ohms	9 VDC	0.4 ms	85 °C	-20 C	1 VDC	12 VDC	0.5 A	Non Latching	Surface Mount	18.5 mA	J Lead	200 VDC 200 VAC
Coto Technology 9202-05-00TR	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	150 Ohms	3.75 VDC	0.4 ms	85 °C	-20 C	0.4 VDC	5 VDC	0.5 A	Non Latching	Surface Mount	33.3 mA	Gull Wing	200 VDC 200 VAC
Coto Technology 9202-12-00TR	SPST-NO (1 Form A)	0.1 ms	Sealed - Hermetically	650 Ohms	9 VDC	0.4 ms	85 °C	-20 C	1 VDC	12 VDC	0.5 A	Non Latching	Surface Mount	18.5 mA	Gull Wing	200 VDC 200 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RELAY RF SPST-NO 500MA 5V
