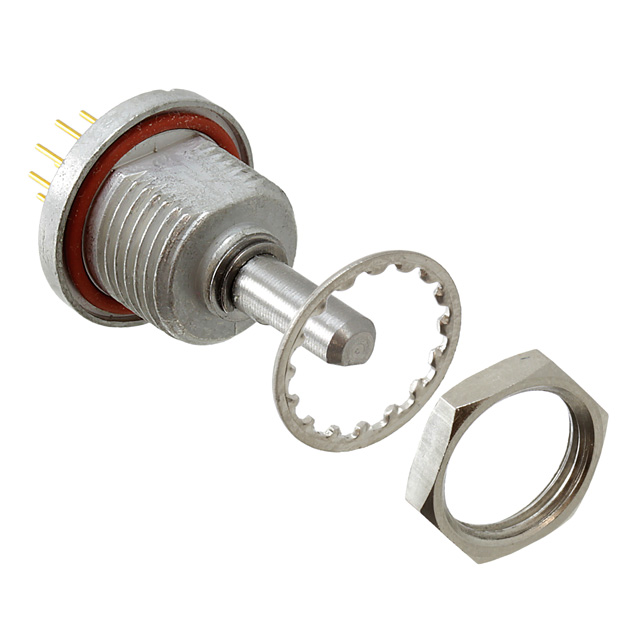

77SP36-01-2-05N
ActiveGrayhill Inc.
SWITCH ROTARY 5POS 50MA 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
77SP36-01-2-05N
ActiveGrayhill Inc.
SWITCH ROTARY 5POS 50MA 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 77SP36-01-2-05N |
|---|---|
| Actuator Length [x] | 7.98 mm |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 3.17 mm |
| Angle of Throw | 36 ° |
| Circuit per Deck | DP5T |
| Contact Finish | Gold |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 200 mA, 50 mA |
| Depth Behind Panel [custom] | 4.57 mm |
| Features | Shaft and Panel Sealed |
| Index Stops | Fixed |
| Mounting Type | Through Hole, Panel Mount |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 2 |
| Panel Cutout Dimensions [diameter] | 9.53 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 53.14 | |
| 5 | $ 49.12 | |||
| 10 | $ 45.96 | |||
| 25 | $ 42.22 | |||
| 50 | $ 39.50 | |||
| 100 | $ 37.34 | |||
Description
General part information
77SP36 Series
Rotary Switch 5 Position DP5T 50mA (AC), 200mA (DC) 115 VAC Panel Mount, Through Hole
