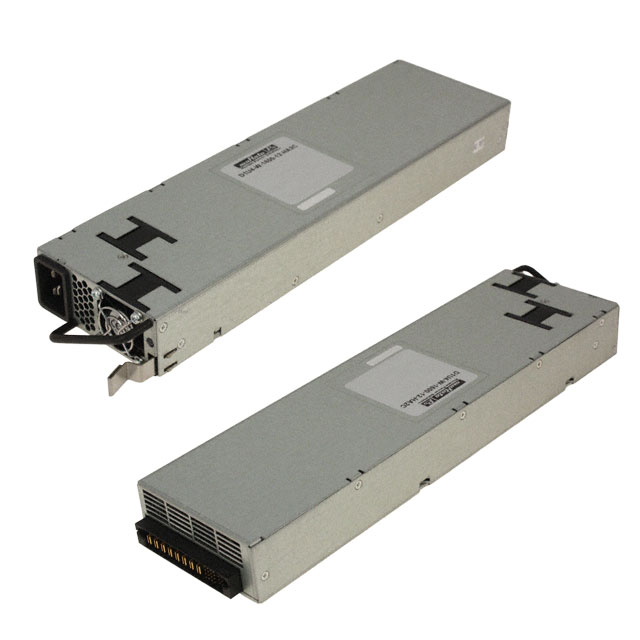

D1U4-W-1600-54-HB4C
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 54V 1600W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D1U4-W-1600-54-HB4C
ObsoleteMurata Power Solutions Inc.
AC/DC CONVERTER 54V 1600W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D1U4-W-1600-54-HB4C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 30 A |
| Efficiency | 90 % |
| Features | I2C Interface, Remote Sense, Hot Swappable, Load Sharing, PMBus™, PFC, Universal Input, Standby Output |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1600 W |
| Size / Dimension [x] | 355.6 mm |
| Size / Dimension [x] | 14 in |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 41 mm |
| Size / Dimension [z] | 1.6 " |
| Type | Front End |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
D1U4-W Series
Front End AC DC Converters 1 Output 54V 90 ~ 264 VAC Input
