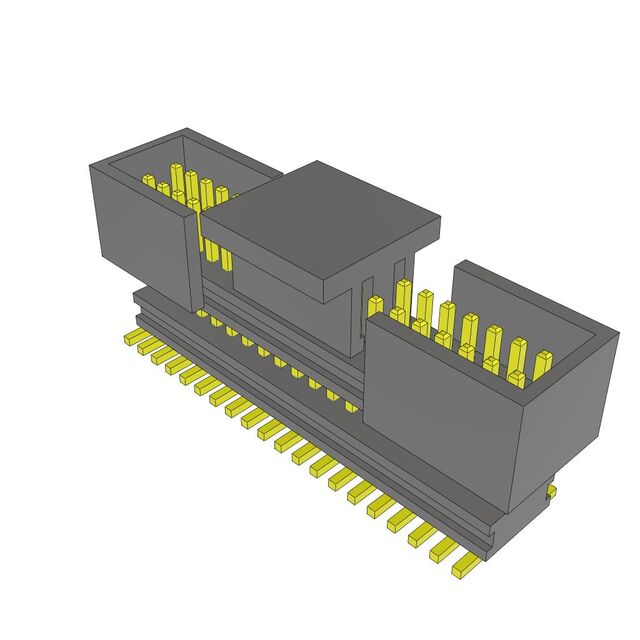

AW-20-03-G-D-170-075-ES-P-TR

Active

Samtec Inc.

0.80 MM FLEX STACK, SURFACE MOUN

Deep-Dive with AI

DocumentsDatasheet CLE/AW Spec Sheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AW-20-03-G-D-170-075-ES-P-TR

Color	Black, Natural
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Post (Mating) [x]	0.075 in
Length - Post (Mating) [x]	1.905 mm
Length - Stack Height [z]	4.318 mm
Length - Stack Height [z]	0.17 in
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in
Termination	Solder

AW-20-03 Series

Board to Board & Mezzanine Connectors

Part	Contact Finish - Post (Mating)	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Color	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Length - Stack Height [z]	Length - Stack Height [z]	Termination	Mounting Type	Number of Rows	Length - Stack Height [custom]	Length - Stack Height [custom]
Samtec Inc. AW-20-03-G-D-165-075-ES-P-TR	Gold	40	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-11-03-G-D-185-075-P	Gold	22 positions	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-21-03-G-D-165-093-A-P-TR	Gold	42	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.093 in	2.362 mm			Solder	Surface Mount	2	0.165 in	4.191 mm
Samtec Inc. AW-50-03-G-D-185-100-A	Gold	100	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.1 in	2.54 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-15-03-G-D-147-075-P-TR	Gold	30	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	3.734 mm	0.147 in	Solder	Surface Mount	2
Samtec Inc. AW-25-03-G-D-122-115	Gold	50	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.115 in	2.921 mm	3.099 mm	0.122 in	Solder	Surface Mount	2
Samtec Inc. AW-07-03-G-D-185-110	Gold	14	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.11 in	2.794 mm	4.7 mm	0.185 in	Solder	Surface Mount	2
Samtec Inc. AW-21-03-G-D-165-090	Gold	42	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.09 in	2.286 mm			Solder	Surface Mount	2	0.165 in	4.191 mm
Samtec Inc. AW-20-03-G-D-170-075-ES-P-TR	Gold	40	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.075 in	1.905 mm	4.318 mm	0.17 in	Solder	Surface Mount	2
Samtec Inc. AW-10-03-G-D-195-090	Gold	20	0.8 mm	0.031 in	0.25 Ám	10 Áin	Black Natural	0.09 in	2.286 mm	4.953 mm	0.195 in	Solder	Surface Mount	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	375	$ 7.12

Description

General part information

AW-20-03 Series

Board to Board & Mezzanine Connectors

Documents

Technical documentation and resources

Datasheet

CLE/AW Spec Sheet

Datasheet
