ZLTMM-125-71-L-D-625

Active

Samtec Inc.

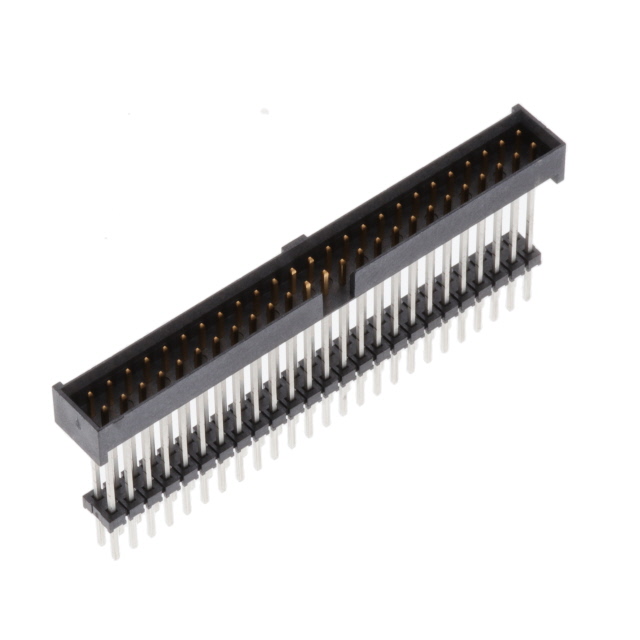

CONN BRD STACK 2MM 50POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK 2MM 50POS

Technical Specifications

Parameters and characteristics for this part

Specification	ZLTMM-125-71-L-D-625

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post [x]	0.21 in
Contact Length - Post [x]	5.33 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	15.88 mm
Insulation Height	0.625 in
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	0.83 in
Overall Contact Length	21.08 mm
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Connector Type	Features	Shrouding	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Fastening Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Type	Termination	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Contact Shape	Number of Positions	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Overall Contact Length	Overall Contact Length	Insulation Height	Insulation Height	Number of Rows
Samtec Inc. ZLTMM-125-71-L-D-625	Elevated Header	Keying Slot	Shrouded - 4 Wall	Gold	-55 °C	125 °C	Through Hole	10 çin	0.25 çm	0.079 in	2 mm	All	Push-Pull	Black	3.05 mm	0.12 in	Male Pin	Solder	Tin	0.21 in	5.33 mm	Nylon Polyamide (PA)	Square	50	0.079 in	2 mm	Phosphor Bronze	0.83 in	21.08 mm	15.88 mm	0.625 in	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole 50 position 0.079" (2.00mm)
