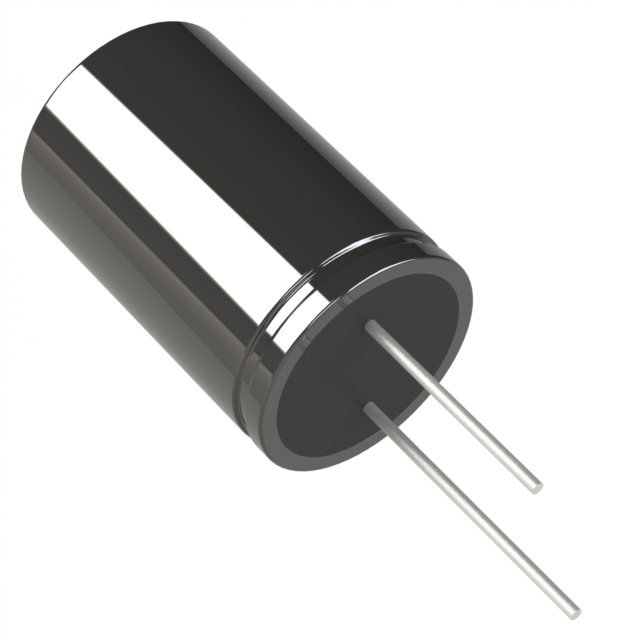

REF1625682M006B

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 6800UF; 6.3VDC; Ø16X25MM; ±20%; REF

Search across all available documentation for this part.

Active

Kyocera AVX

CAPACITOR: ELECTROLYTIC; THT; 6800UF; 6.3VDC; Ø16X25MM; ±20%; REF

Technical Specifications

Parameters and characteristics for this part

Specification	REF1625682M006B

Applications	General Purpose
Capacitance	6800 µF
Height - Seated (Max) [Max] [z]	1.063 in
Height - Seated (Max) [Max] [z]	27 mm
Impedance	15 mOhms
Lead Spacing	7.5 mm
Lead Spacing	0.295 in
Lifetime @ Temp.	6000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	3.51 A
Ripple Current @ Low Frequency	2.9835 A
Size / Dimension [diameter]	0.63 in
Size / Dimension [diameter]	16 mm
Tolerance	20 %
Voltage - Rated	6.3 V

Part	Applications	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lead Spacing	Lead Spacing	Package / Case	Tolerance	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Lifetime @ Temp.	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Polarization
Kyocera AVX REF1235152M035B	General Purpose	1.5 mF	0.492 in	12.5 mm	-40 °C	105 ░C	35 V	5 mm	0.197 in	Radial Can	20 %	14 mOhms	37 mm	1.457 in	Through Hole	6000 Hrs	3.45 A	2.07 A	Polar
Kyocera AVX REF1625682M006B	General Purpose	6800 µF	0.63 in	16 mm	-40 °C	105 ░C	6.3 V	7.5 mm	0.295 in	Radial Can	20 %	15 mOhms	27 mm	1.063 in	Through Hole	6000 Hrs	3.51 A	2.9835 A	Polar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.8 mF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
